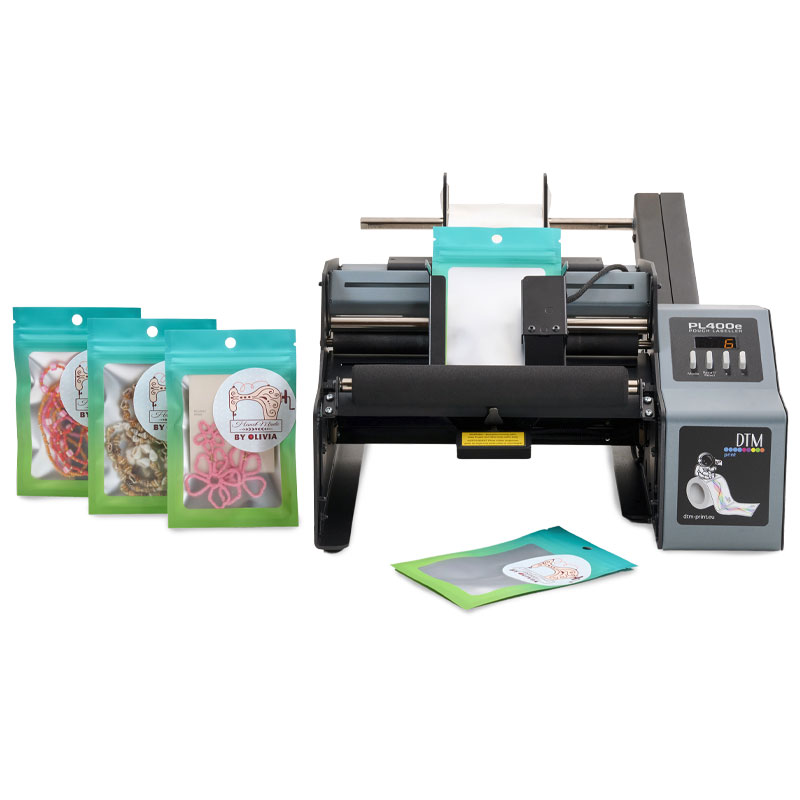

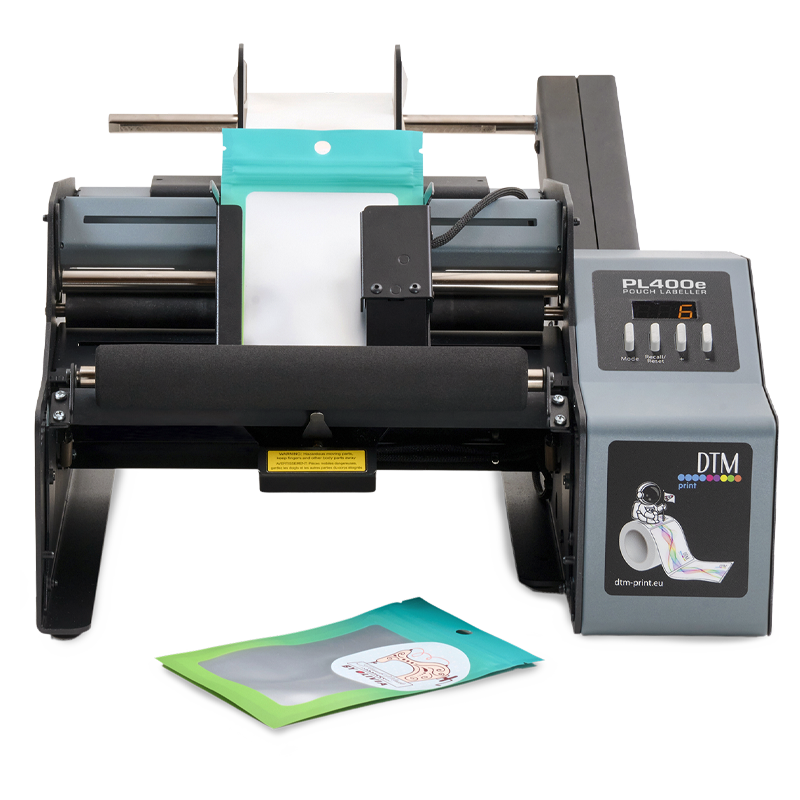

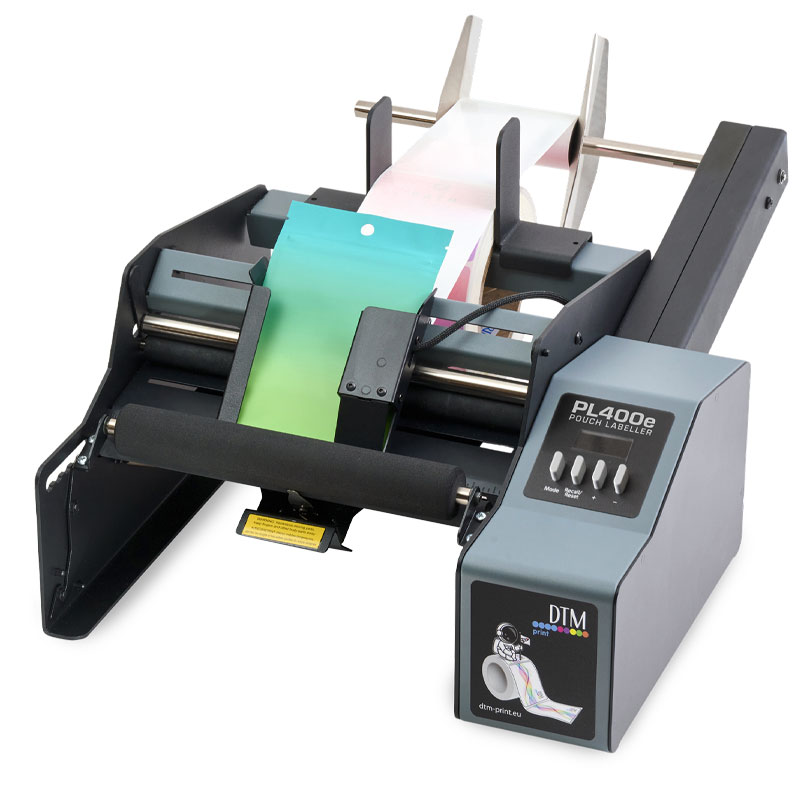

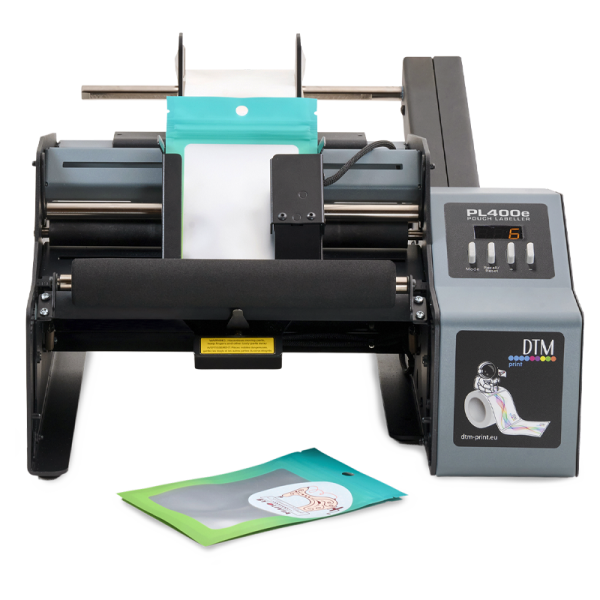

DTM PL400e

PL400e Pouch Label Applicator

The DTM PL400e Pouch Labeller is a high-precision semi-automatic labeling machine designed for businesses that need to apply labels to unfilled pouches quickly and accurately. Built for efficiency, the PL400e ensures each label is applied smoothly and evenly, reducing errors and improving product presentation. With flexible options to label the front and back of pouches, this versatile labeller speeds up production and increases accuracy. Its intuitive design allows for easy setup, fast operator training, and minimal downtime, making the PL400e an essential addition to any pouch labeling workflow.

Features

Quick set-up and easy operation

Integrated label liner rewinder

Accurately applies labels in variable positions

High labelling speed: up to 1300 labels per hour

Accepts pouches of different sizes and materials – also works with zippers, euro holes and degassing/aroma valves

Download the Brochure
Get a Quote
Contact us

Technical Specifications

Number of Labels Dispensed per Trigger 1
Speed 142 mm/s (5.6"/s) or up to 1,300 pouches per hour
Pouch Shape Flat pouches up to 5.3 mm (0.21") thick
Pouch Width 81 mm - 229 mm (3.2" - 9")
Pouch Height 45 mm - 812 mm (1.75" - 32")
Label Width 19 mm - 210 mm (0.75" - 8.25")
Label Height 19 mm - 812 mm (0.75" - 32")
Supply Roll Up to 203 mm (8") OD with 50.8 mm or 76.2 mm (2" or 3") ID, outer wound, pre-die-cut
Label Liner Rewinder Yes
Supply Roll Diameter 203 mm (8")
Label Sensor Type Mechanical sensor
Media Liner Width 25.4 mm - 213 mm (1" - 8,39")
Supply Roll Core 51,8 mm - 76,2 mm (2,04" - 3")
Indicator Lights LED display with built-in up/down counter and saved jobs
Controls Mode, Recall/Reset, Up, Down
Power Requirements 100 V - 240 V AC (50/60 Hz), 12 V DC, 5.0 A
Power Consumption Idle: 1.6 W
Average: 20 W
Certifications UL, UL-C, CE, FCC Class A, RoHS, UKCA
Weight 8.4 kg
Dimensions (W × H × D) 340 mm × 185 mm × 508 mm
Gap between labels Recommended: 3 mm - 6 mm
Label Type Die-cut labels with or without matrix; transparent labels can be used
Liner Thickness 50.8 µm - 254 µm (smoothness affects feed - too smooth or thin liner may slip through the drive rollers)
Label + Adhesive Thickness 127 µm - 381 µm
Wind Direction Outer winding - See the print position overview below (Position 3 or 4 for most containers)
What's in the Box PL400e Labeler, Quick Start Guide, Universal Power Supply
Warranty 36 months (after product registration, for devices purchased in EU/EFTA countries and UK)
Manufacturer Primera Technology, Inc.

LABEL COPY POSITION CHART

Copy positions 1-4 labels wound out

{{brizy_dc_image_alt imageSrc=

Top of copy

dispenses first.

{{brizy_dc_image_alt imageSrc=

Bottom of copy

dispenses first.

{{brizy_dc_image_alt imageSrc=

Right side of copy

dispenses first.

{{brizy_dc_image_alt imageSrc=

Left side of copy

dispenses first.

*Important Note: Pliability/Flexibility/Rigidity of the label is also a factor. If the label is too flexible, no matter the thickness, it can cause wrinkling or it may not pop off the liner when going around the peel edge. Polypropylene, Polyester and Vinyl labels tend to be more flexible than paper labels. If you suspect the label stock is too flexible, it is recommended that the stock and container be tested on the Applicator before making any purchase decisions of label stock or the applicator.
