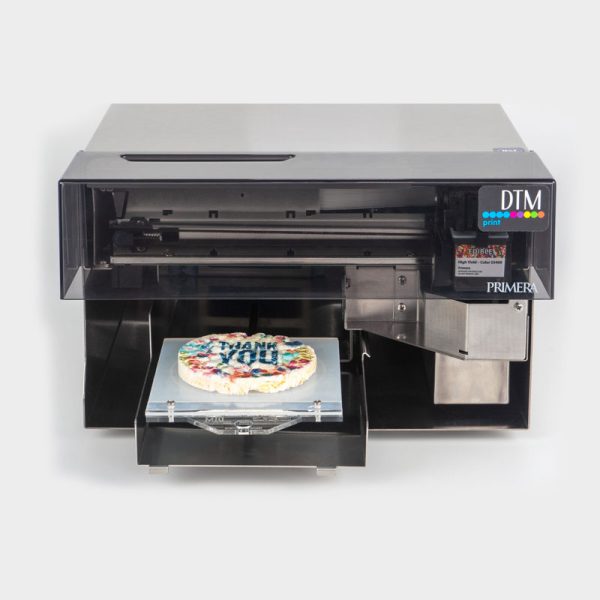

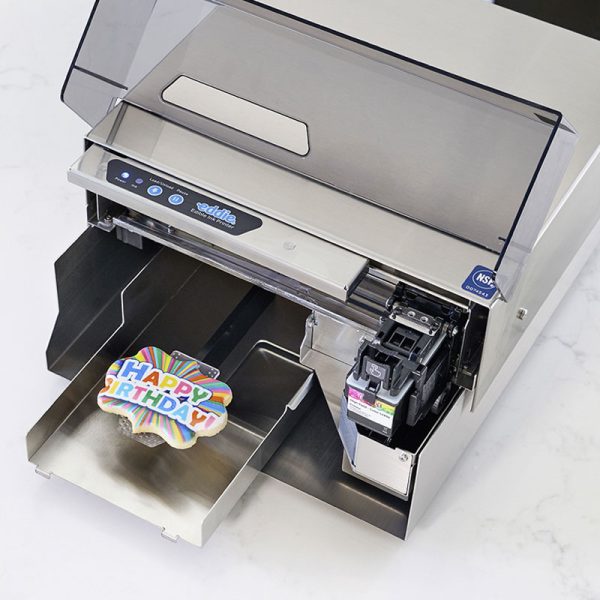

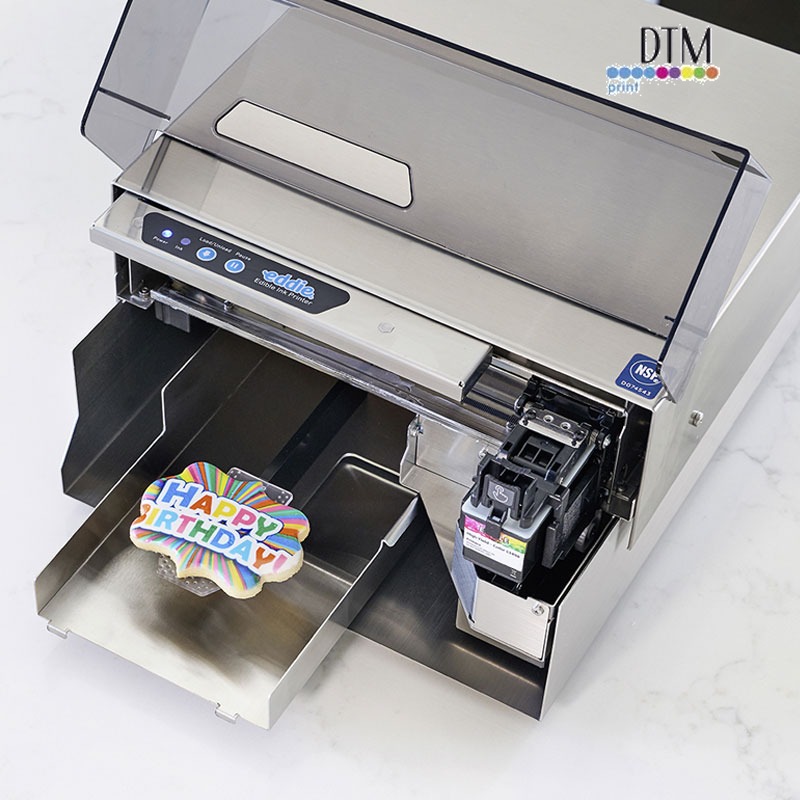

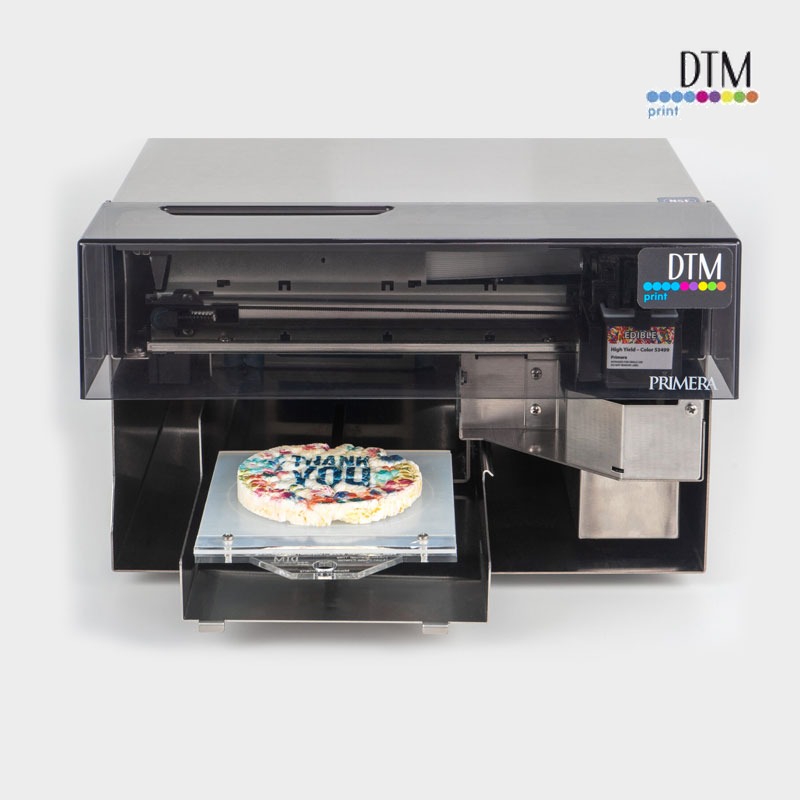

DTM – Eddie Lite Edible Ink Printer
Discover the versatile Eddie Edible Ink Printer. High-resolution printing up to 1200 x 1200 dpi. Fast, efficient, and perfect for edible creations.
12-month warranty on labour and non-wet parts, on every brand we carry.
- Print Method
- Thermal inkjet with edible ink
- Print Resolution
- 1200 x 1200 dpi native; · up to 1200 x 4800 dpi
- Print Speeds
- Varies by item size and print (e.g. for objects with Ø 89…
- Inks
- Single high capacity CMY ink cartridge, process black
- Print Method: Thermal inkjet with edible ink
- Max. Print Speed: 5 – 6 items per minute,
- Varies by item size and print
- Media Thickness: Up to 25mm
- Print Resolution: 1200 x 1200 dpi

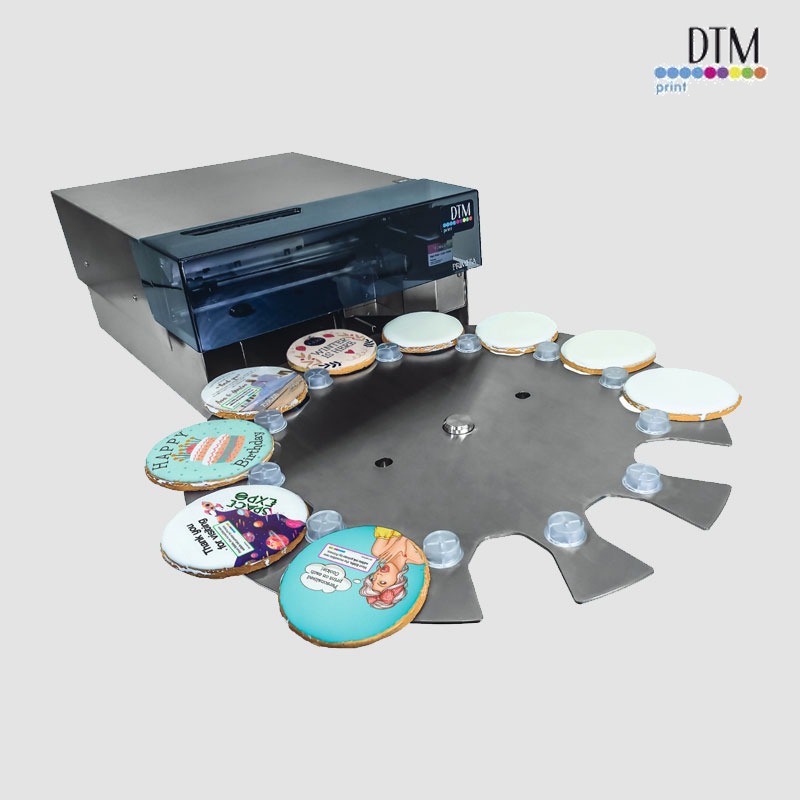

- Additional Carousel & Carousel base can be added
Specifications
27 specifications, as published by LabelGraff for the DTM – Eddie Lite Edible Ink Printer.
- Print Method
- Thermal inkjet with edible ink
- Print Resolution
- 1200 x 1200 dpi native; · up to 1200 x 4800 dpi
- Print Speeds
- Varies by item size and print (e.g. for objects with Ø 89 mm 5-6 pcs./minute)
- Inks
- Single high capacity CMY ink cartridge, process black
- Printhead
- Included in cartridge
- Colours
- 16.7 million
- Print Width
- up to 120 mm
- Item Width
- Platform Kit: 0 – 120 mm
- Item Height/Thickness
- Platform Kit: 30 – 60 mm
- Ink Level Warning
- Calculates actual number of prints remaining based upon ink usage of graphics being printed.
- Indicator Lights
- Power, Ink
- Operating Systems
- Windows 7 – 11 · Mac OS X 10.11 – macOS 12
- Data Interface/Connections
- USB 2.0
- Design Software
- BarTender UltraLite and NiceLabel Free DTM Version (Windows) · Belight Swift Publisher (Mac) · Can also be used with most other popular label design & graphics programs.
- Power Requirements
- 100-240 V AC (50/60 Hz), 36 W or 12 V DC, 3 A
- Operating Temperature
- 10 °C to 35 °C
- Operating Humidity
- 10 % to 60 % RH (non-condensing)
- Certifications
- UL, UL-C, FCC Class A, NSF/ANSI Standard 18 Manual Food and Beverage Equipment. · 21CFR: US Code of Federal Regulations, Title 21 – US FDA · EU 231/2012: Regulation (EU) No 231/2012 laying down specifications for food additives
- Weight
- Total weight 11.3 kg · Printer: 8.5 kg
- Dimensions (WxHxD)
- Total: 406 mm x 181 mm x 792 mm · Printer: 317 mm x 181 mm x 474 mm
- What’s in the Box
- Eddie Edible Ink Printer, edible ink cartridge (053499), USB 2.0 cable, EU power cord and instructions Design Software and printer driver can be downloaded from the DTM Print website.
- Warranty
- 12 months on labour and non-wet parts, via LabelGraff in the UAE and GCC
- Dyes Contained in the CMY Cartridge
- Cyan: Blue #1 – Brilliant Blue FCF (E133) · Magenta: Carmoisine – Azorubin (E122) · Yellow: Yellow #5 – Tartrazin (E102), Yellow #6 – Sunset Yellow FCF (E110)
- Feeding Mechanism
- Platform Kit & DTM Trays (manual): The feeding arm feeds the printed objects into the printer, which automatically adjusts the height, prints the objects and then presents them.
- Controls
- Load/Unload, Pause
- Recommended Accessoires
- Different trays and spacers are available for both automatic and manual feed. These allow printing on any objects within the mentioned specifications.
