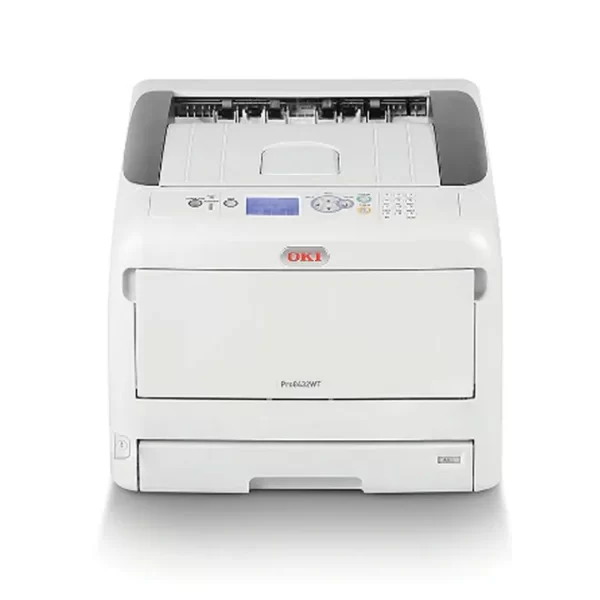

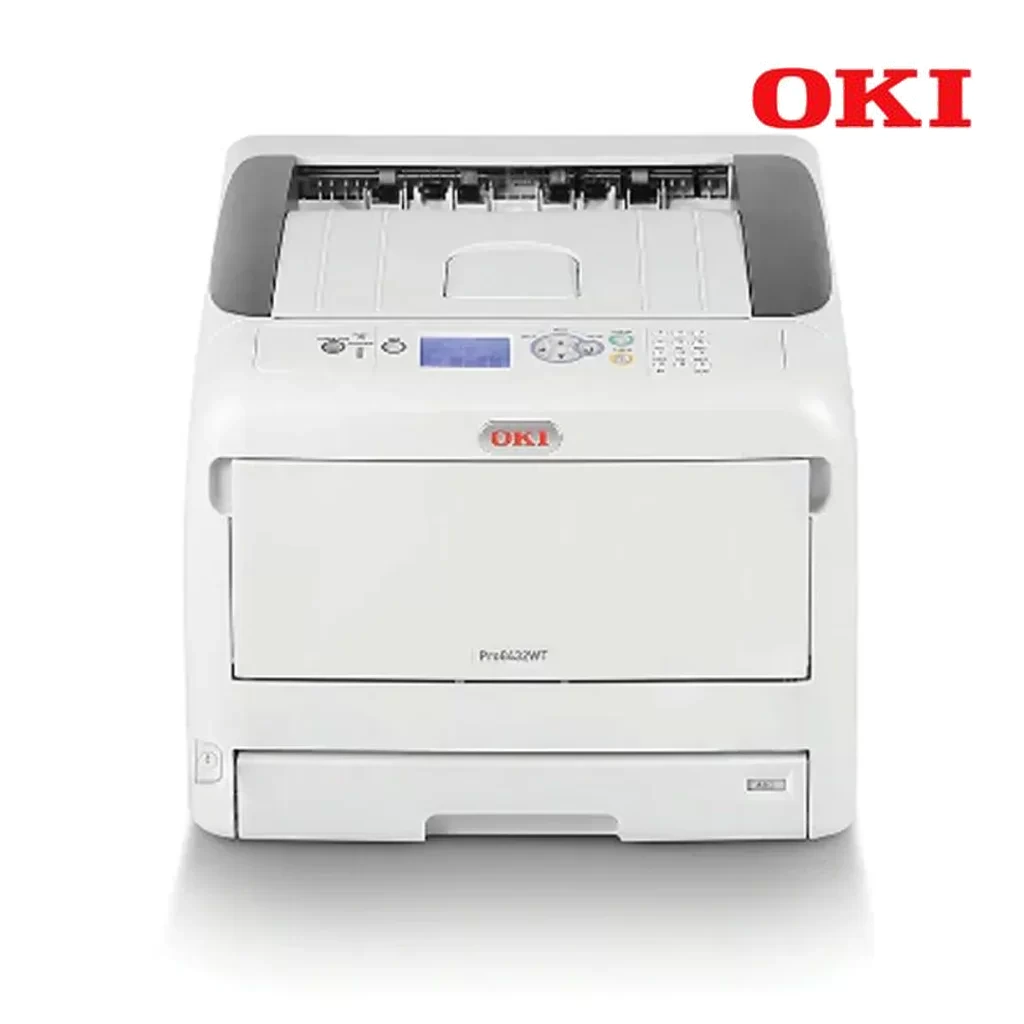

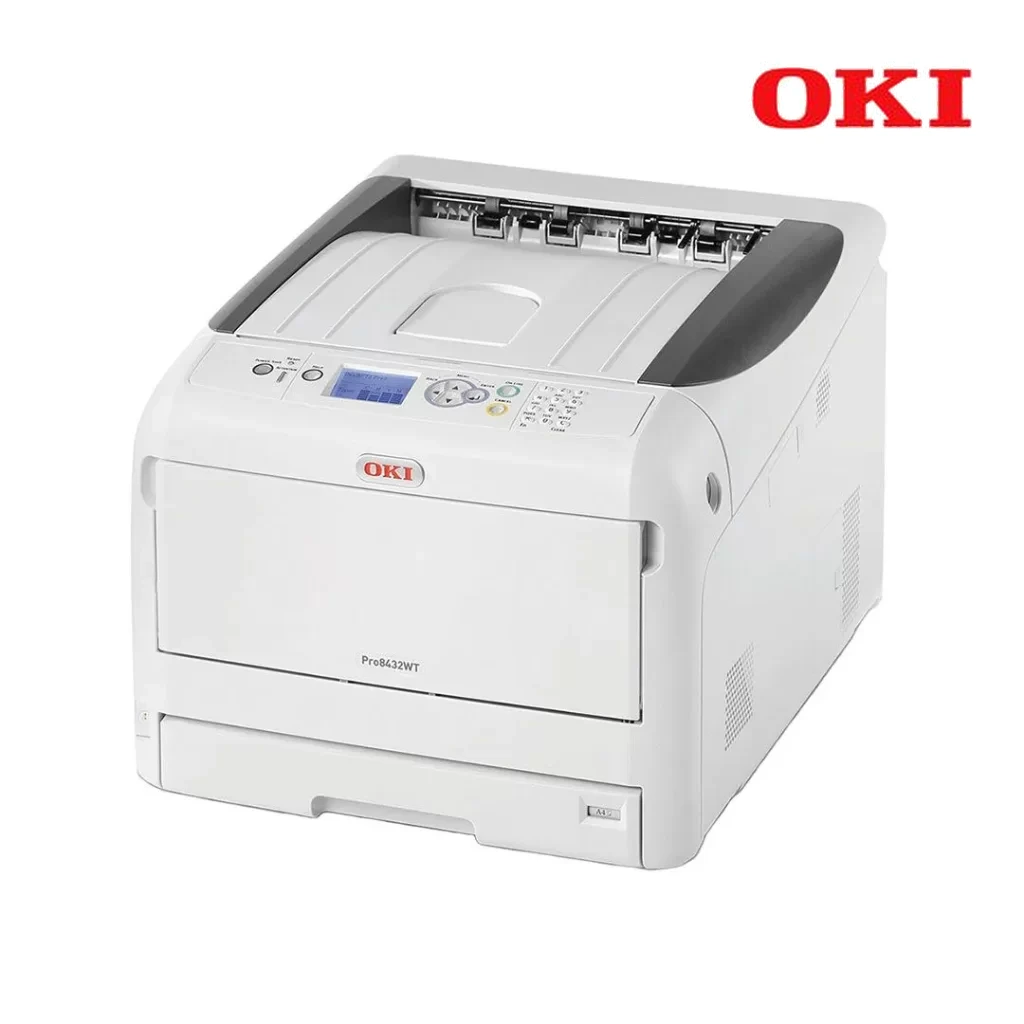

Pro8432WT A3 LED Transfer

The OKI Pro8432WT is a versatile printer designed for high-quality, full-color printing with white toner technology. Perfect for custom designs at events, hotels, and gift shops, it prints on fabric, paper, and other surfaces. As part of OKI’s White Toner portfolio, it combines the speed and reliability of standard color digital LED printers with the added benefit of white toner.

  • APPLICATIONS
  • DESCRIPTION
  • SPECIFICATIONS
APPLICATIONS
T-Shirts
Tote Bags
Caps
Mug
Pillow
Candles
DESCRIPTION

Innovative Technology – CMYW, A First For Digital Printing

The Pro8432WT is part of OKI’s White Toner (WT) portfolio – the first digital printer range that offers users the ability to print using white toner. Based on tried and tested devices, that are well regarded by graphic based industries for their high-quality output, the innovative Pro8432WT offers the same speeds as OKI’s standard colour digital LED printers and easy to use and operate.

Ultra-reliable digital LED printing technology and a simple, flat paper path for longer trouble-free printing.

Microfine High Definition toner and ProQ Multi-level output quality with 1200 x 600dpi print resolution for sharp, crisp results

Prints at the same speeds as standard colour digital LED printers – 35ppm A4 plain paper, 20ppm, A3 plain paper

Printer shipped with 2 additional 4,500-page White toner cartridges, to enhance your Return on Investment from day one

Extend Creativity – White Toner Technology Removes The Last Barrier In Creativity And Design

The Pro8432WT removes the design barriers presented by traditional CMYK printing processes. Printing solid white onto a wide variety of media, it can be used in combination with transfer media to create vibrant print on dark backgrounds, dark coloured garments and other hard surfaces.

Creates vibrant print on dark backgrounds, dark coloured garments and other hard surfaces

Produces white graphic and lettering transfers on cost-effective transfer media

In-House Printing – Ideal For Graphics, Design And Merchandising Materials

White toner printing offers designers, graphics studios, point-of-sale manufacturers and a range of other graphics-based businesses new flexibility in printing, proofing and production, making it possible to print a range of demands in-house whenever they are needed. Flexible and built to overcome many of the barriers to creativity, the versatile Pro8432WT lowers the cost of producing creative design proofs.

Prints on paper sizes from A6 to A3 and weights up to 256gsm

Standard 400-sheet paper supply

Versatile Media – Stand-Out Printing On Coloured Media, Clear Film And Transfer Media

For window graphics and clear film, the ability to print white on top of the other colour adds richness and depth to the graphics and text and displays white where needed, making colours stand out.

Creates vibrant CMYW colours on dark and light-coloured media, clear film and transfer media, ensuring colour and image integrity

SPECIFICATIONS
Print speed A4: 35ppm; A3: 20ppm
Time to first print 9.2 seconds
Warm up time 20 seconds from power save; 25 seconds from power on
Processor speed 800MHz PowerPC 464FP
INTERFACE AND SOFTWARE
Connectivity USB 2.0 Device, 10/100/1000 Base Ethernet, USB 2.0 Host x 1, Wireless IEEE802.11a/b/g/n (Optional)
Printer languages PostScript 3
Network & protocols All major network protocols supported via ethernet card with internal web server for printer and network card set-up and management. TCP/IPv4&v6, NetBIOS over TCP, DHCP, DHCPv6,BOOTP, HTTP, HTTPS, DNS, DDNS, WINS, UPNP, Bonjour, SMTP, POP3, SNMPv1&v3, SNTP, IPP, IPPS, WSD Print, LLTD, IEEE802.1X, LPR, Port9100, Telnet, FTP, Google Cloud Print, Wireless IEEE802.11a/b/g/n, WEP, WPA (Personal/Enterprise), WPA2 (Personal/Enterprise)
OS Compatibility 1 Windows Vista (32-bit & 64-bit) / Server 2008 (32-bit & 64-bit) / Windows 7 (32-bit & 64-bit) / Server 2008 R2 (64-bit) / Windows 8 (32-bit & 64-bit) / Server 2012 (64-bit) / Windows 8.1 (32-bit & 64-bit) / Server 2012 R2 (64-bit) / Windows 10 (32-bit & 64-bit); Mac OS X 10.8.5 to 10.12
Advanced networking and security IPv6, 802.1 x authentication, SNMPv3, SSL/TLS, MAC filtering, IP filtering, SMTP-AUTH, Protocol ON/OFF, Protocol Port No. Change
Utilities OKI LPR2, PS Gamma Adjuster
PAPER HANDLING
Paper capacity Tray 1: 300 sheets of 80gsm;
Multi-purpose tray: 100 sheets of 80gsm
Maximum paper capacity 400 sheets of 80gsm
Paper sizes Tray 1: A3, A4, A5, A6, B4, B5; Multi-purpose tray: A3, A4, A5, B4, B5, A6; Custom size up to 431.8mm length
Paper weight Tray 1: 64 to 220gsm; Multi-purpose tray: 64 to 256 gsm
Paper output 250 sheets face down, 100 sheets face up, 80gsm
PRINT QUALITY
Resolution ProQ Multi-level technology, 1200 x 600 dpi
Enhancements Auto Colour Balance, Auto Registration, Auto Media Detect
TYPEFACES
Printer fonts 80 PostScript fonts

Media type

Type of media Thickness Support cutting blade FCX4000-50/60ES FCX2000-60VC FCX2000-120VC FCX2000-180VC FCX2000-120ES
Self-adhesive marking film
(vinyl, fluorescent, reflective)
up to 0.25 mm CB09UB-5
Heavy paper/board
(pattern paper, oil board)
up to 0.5 mm CB15U-5,
CB15U-K30-5
up to 1.0 mm CB30UC-1
Compressed foam sheet up to 0.8 mm CB15U-K30-5
Sandblast resist rubber up to 1.0 mm
Cardboard E flute up to 1.5 mm CB30UC-1 (*7)
F / G flute up to 1.2 mm CB30UC-1
CB15U-K30-5
Rubber sheet up to 1~2 mm PM-CB-001 (*7)
Clear sheet for plastic boxes up to 0.5 mm CB15U-5
up to 1.0 mm CB15U-K30-5
High-intensity reflective film up to 0.5 mm CB15UA-5
up to 1.0 mm CB15UA-K30-5

Standard Accessory

Item Q’ty Description
Power cord 1 pc. The type of cord is different by destination
Cutting blade holder 1 pc. PHP33-CB15N-HS
Cutting blade 1 pc. CB15U-1 (1 pc/pack)
Loupe 1 pc. PM-CT-001 (for checking the extruded length of blade)
Pen holder 1 pc. PHP31-FIBER
Water-based fiber-tip pen 1 pc. KF700-BK (Black)
Protect sheet 1 pc. PM-CR-002 for FCX4000-50ES / PM-CR-003 for FCX4000-60ES
USB cable 1 pc. Length 2.9 m
DVD-ROM 1 set ・User’s manual (PDF)
・Windows driver (OPS662)
・Cutting Master 4 (plug-in software for Illustrator/CorelDRAW in Windows, Illustrator in Mac)
・Graphtec Pro Studio (design software for Windows)
・Graphtec STUDIO (Design software for Mac)
Printed documents 1 set Quick guide, Usage Precautions,Cutter Blade Manual

Options

Item Part No. Description
Graphtec Pro Studio Plus OPS682-PLS Design software including all advanced functions. (1 license)
Graphtec Pro Studio Plus for Rhinestone OPS682-RSF Limited edition of rhinestone function only. (1 license)
Graphtec Pro Studio Plus for Auto Nesting OPS682-ANF Limited edition of auto nesting function only. (1 license)
Stand  ST0113 Stand for FCX4000-60ES
