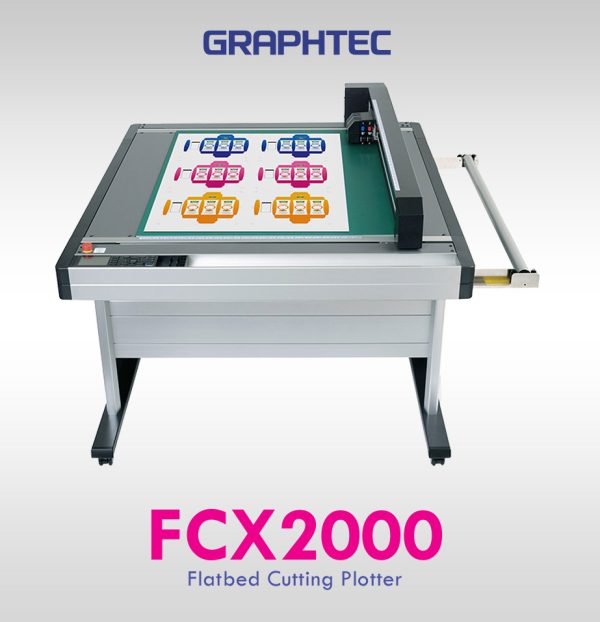

FCX2000 Series

Low-cost, Die-free cutting and Processing

The FCX2000 is the ultimate solution for prototyping and small production runs of rigid materials without the use of a cutting die. Reduce media waste/ processing time with Graphtec’s precision cutting and dedicated software. Added offline(USB) operation enables users of all skill levels to easily process materials.

  • APPLICATIONS
  • FEATURES
  • SPECIFICATIONS
  • DIMENSIONS
  • ACCESSORIES
  • CONSUMABLES
APPLICATIONS

Sandblasting

Traffic Signage

Garment / Shoe Pattern

Sandblasting

Packaging

Industrial Goods

Sticker

FEATURES

Table size in the Line-up

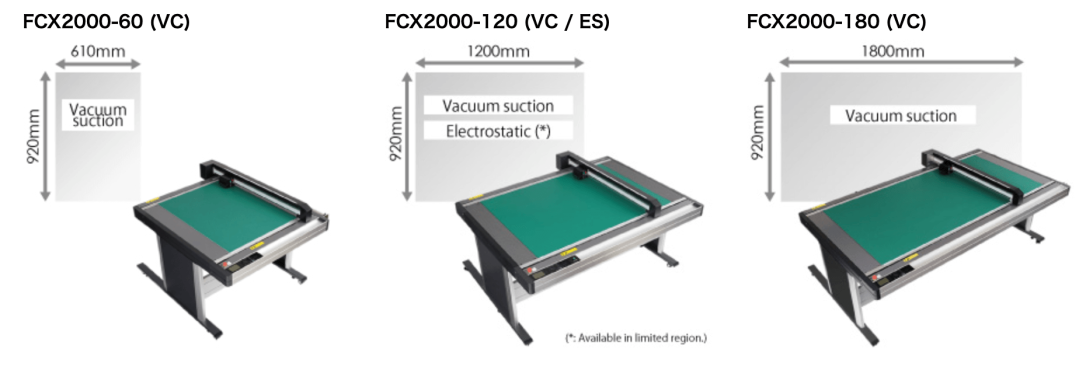

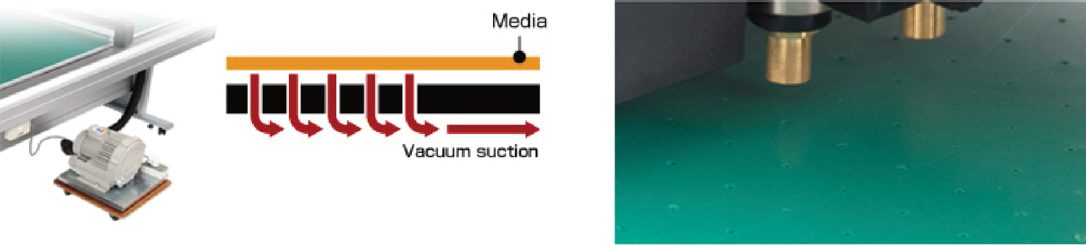

3 different table size with choice of vacuum suction or electrostatic media-hold down methods depending on application.

Stronger Media Hold-Down

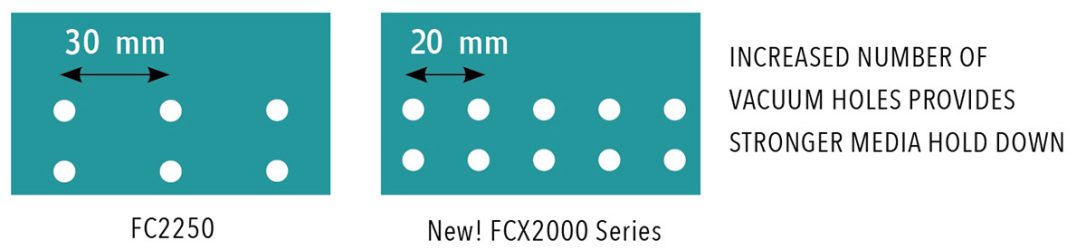

Distance between the holes has been improved from 30 mm on FC2250 Series to 20 mm on FCX2000 Series, as a result, FCX2000 Series provides stronger suction power to hold heavier and thicker medias down.

Dual tool holder with 500 gf on tool 1 and 1,000 gf on tool 2

Provided tools suitable for many applications

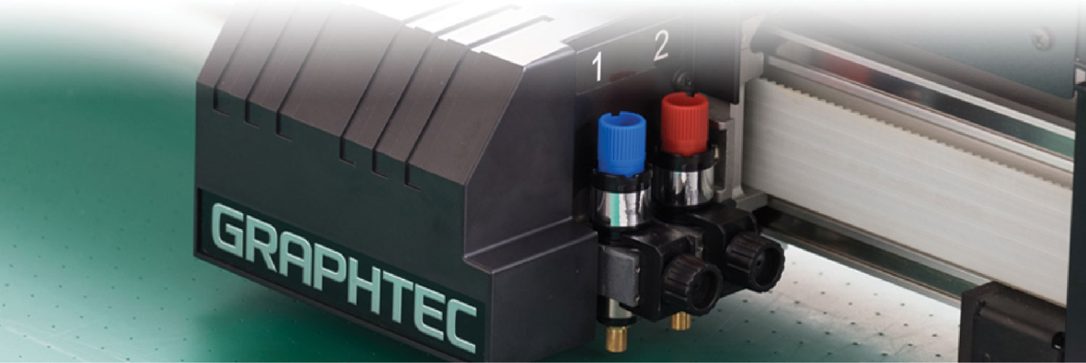

The FCX2000 series has 2 tool holder in the carriage.

Using 2 different kind of tool allows to do a different job

without exchanging a tool at the same time. it can increase work efficiency.

Tool Holders & Cutting/Creasing Tools

Dual Tool Holders which can hold a cutting blade and creasing tool — to produce creases/folds and cuts on the same run.

Intuitive operation with 3.7″ LCD

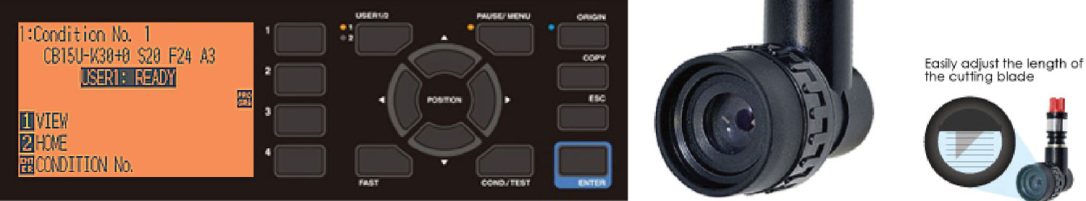

Onboard control and settings are simplified using the equipped 3.7” LCD (240×128 dots) and tactile control panel.

Offline operation supported by use of USB flash memory

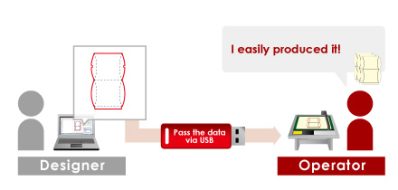

Cut and plot data is created with Cutting Master 4 or Graphtec Pro Studio. That saved data may be transferred to a USB flash memory and the cut plot data file can be selected from the USB on the FCX2000 using its menu operations. This simplified workflow enables users to operate without being connected to the computer.

Data management using barcode function with USB flash memory

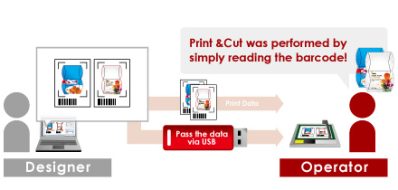

In Print & Cut (referred to as “P&C”) operation, the cutting data is automatically selected from USB flash memory by scanning the barcode printed on the media then performs contour cutting. This prevents the usage of incorrect data, and improves work efficiency.

Expanded Contour Cutting Area

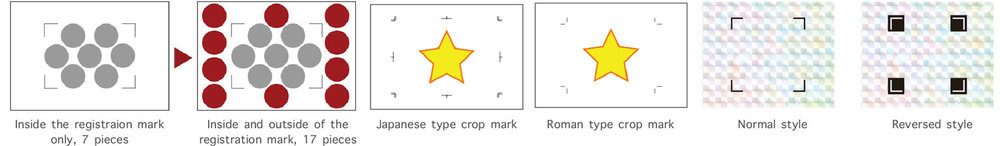

This included function expands the print and cut area to include objects outside of the registration marks! Production efficiency is enhanced and media waste is reduced.

Supports Standard Crop Marks

Contour cutting pre-printed media is also possible using “standard crop marks.” This operation is available with the included Cutting Master 4 plug-in workflow.

Reversed Color Registration Marks

Registraiton marks are detectable when there is sufficient contrast against the mark and its background. Ultra glossy and reflective media offer challenges for accurate registration mark detection. With this reversed color output, the sufficient contrast is brought back for the ability to contour cut pre-printed ultra glossy and reflecting sheeting.

SPECIFICATIONS
Model name FCX2000-60VC FCX2000-120VC FCX2000-180VC FCX2000-120ES (*1)
Configuration Digital servo system, Flatbed
Media hold-down method Vacuum suction Electrostatic
Effective cutting area 610mm x 920mm 1,200mm x 920mm 1,800mm x 920mm 1,200mm x 920mm
Mountable media (Y-axis) 950mm
Roll media support Roll media stocker (manual feeding), supported media; width: up to 950 mm, weight: up to 5 kg
Maximum cutting speed 400 mm/s (1 to 40 cm/s in 16 steps), in all directions
Cutting force Tool 1: Max. 4.9 N (500 gf), Tool 2: Max. 9.8 N (1 kgf)
Cutting force settings Tool 1: in 40 steps, Tool 2: in 40 steps
Minimum character size Approx. 10 mm square (varies with character font and media)
Programmable resolution GP-GL mode: 0.1/0.05/0.025/0.01 mm, HP-GL™ : 0.025 mm
Distance accuracy Max. 0.1% of the distance moved or 0.1 mm, whichever is larger (in plotting mode) (*2)
Perpendicularity Max 0.5 mm / 900 mm (in plotting mode)
Repeatability Max 0.1 mm (excluding contraction of media, in plotting/cutting mode) (*2)
Standard interfaces RS-232C, USB2.0 (High-Speed), and Ethernet (10BASE-T/100BASE-TX)
Buffer memory 2MB
Command sets GP-GL and HP-GL™ emulation (set by menu, or selects automatically by received data)
Number of tools Two tools
Cutting blade, pen, and tool types Cutting blade (supersteel), Pens (Water-based fiber-tip pen, oil-based ballpoint pen), and Creasing/scoring tool
Others ARMS, Reverse side Cutting/Creasing using ARMS, ARMS Copy function, Creasing, Cutting/creasing in multiple passes
Power source 100 to 240 VAC, 50/60 Hz (Auto switching)
Power consumption Max. 140 VA
Operating environment Temperature: +10 to +35 ºC, Humidity: 35 to 75% RH (non-condensing)
Guaranteed accuracy environment Temperature: +16 to +32 ºC, Humidity: 35% to 70% RH (non-condensing)
External dimensions [W x D x H] (Approx.) 1344 x 1409 x 930 mm (Including stand) 1934 x 1409 x 930 mm (Including stand) 2534 x 1409 x 930 mm (Including stand) 1934 x 1409 x 930 mm (Including stand)
Weight (Approx.) 76 kg (Including stand) (*3) 99 kg (Including stand) (*3) 116 kg (Including stand) (*3) 93 kg (Including stand)
Compatible OS (*4) Windows 10 / 8.1 / 8 / 7, Mac OS X 10.7 to 10.11 / macOS 10.12 (Sierra) to 10.14 (Mojave)
Supported software (*4) (*5) Cutting Master 4 (*6), Graphtec Pro Studio (*6), Graphtec Studio(for Mac)
Compatible Standards Safety UL60950-1/cUL, CE marking (Low voltage and EMC)
EMC FCC-A, EN55032-A

Media type

Type of media Thickness Support cutting blade FCX2000-60VC FCX2000-120VC FCX2000-180VC FCX2000-120ES FCX4000-50/60ES
Self-adhesive marking film (vinyl, fluorescent, reflective) up to 0.25 mm CB09UB-5
Heavy paper/board (pattern paper, oil board) up to 0.5 mm CB15U-5, CB15U-K30-5
up to 1.0 mm CB30UC-1 -
Compressed foam sheet up to 0.8 mm CB15U-K30-5 -
Sandblast resist rubber up to 1.0 mm
Cardboard E flute up to 1.5 mm CB30UC-1 (*7) -
F / G flute up to 1.2 mm CB30UC-1 -
CB15U-K30-5
Rubber sheet up to 1~2 mm PM-CB-001 (*7) - -
Clear sheet for plastic boxes up to 0.5 mm CB15U-5
up to 1.0 mm CB15U-K30-5
High-intensity reflective film up to 0.5 mm CB15UA-5 -
up to 1.0 mm CB15UA-K30-5 -

Options

Item Part No. Description
Graphtec Pro Studio Plus OPS682-PLS Design software including all advanced functions. (1 license)
Graphtec Pro Studio Plus for Rhinestone OPS682-RSF Limited edition of rhinestone function only. (1 license)
Graphtec Pro Studio Plus for Auto Nesting OPS682-ANF Limited edition of auto nesting function only. (1 license)
Warning Light (Optional) (*8) OPH-A40 The component incorporated to FCX2000

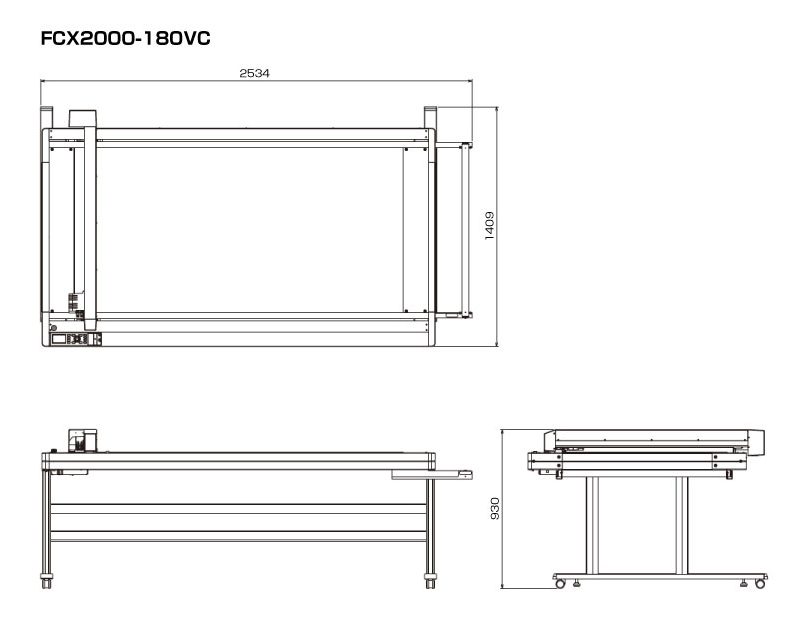

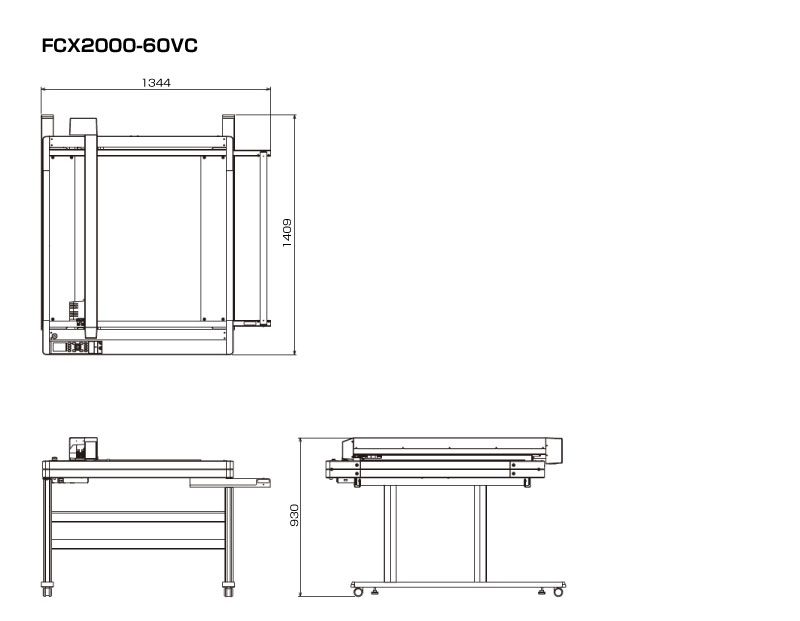

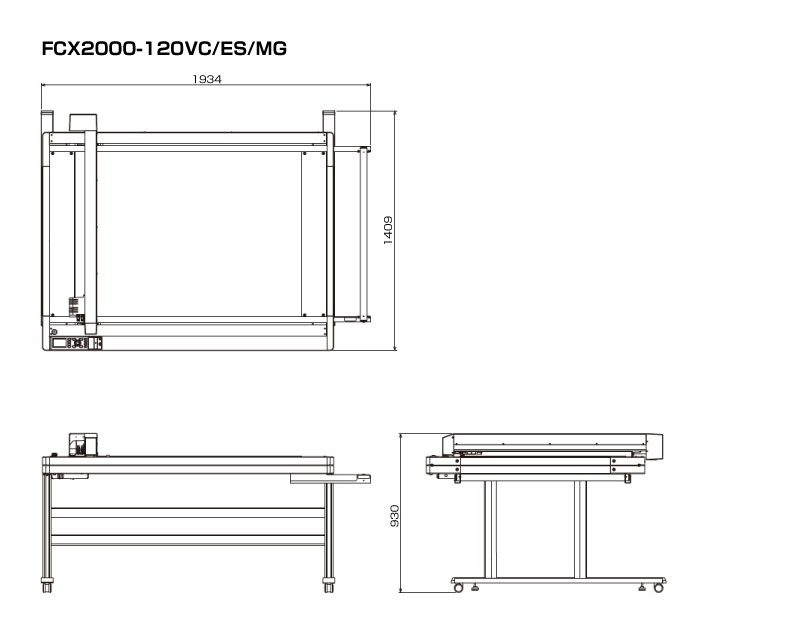

DIMENSIONS

Scale : mm

Tolerance : +/- 5 mm

Scale : mm

Tolerance : +/- 5 mm

Scale : mm

Tolerance : +/- 5 mm

ACCESSORIES
item Q’ty Description
Power cable 1 pc. The type of cable is different by destination
Cutting blade holder 1 set PHP35-CB15-HS
Cutting blade 1 set CB15U (2 blades), CB15U-K30 (5 blades)
Loupe 1 pc. PM-CT-001, for checking blade length
Fiber-tip pen 1 set KF700-BK (Black) and PHP31-FIBER (pen holder)
Height adjustment tool 1 set For adjusting position of tool head (plate, key wrench)
USB cable 1 pc. Length 2.9 m
Roll media stocker 1 set Loadable media: width up to 950 mm, weight up to 5 kg
Stand 1 set Legs of the stand (Connecting bar is packed with main unit)
DVD-ROM 1 pc. User’s manual, Windows driver
Printed document 1 set Quick guide, Safety manual
Durable flexible hose 1 pc. For VC models only, 1.5 to 5 m (shrinked/extended)
Connection bore diameter: 50mm
Hose band 2 pcs. For VC models only, to fix the hose
Protect sheet (PM-CR-004) 1 mat for protecting the writing panel of FCX2000-120ES,
Transparent vinyl, thickness 0.3 mm,
Size: 1,328 mm x 968 mm
CONSUMABLES
Item Model Name Image Description
Cutting blade holder PHP33-CB09N-HS For CB09U series blade
PHP33-CB15N-HS For CB15U series blade
PHP35-CB09-HS For CB09U series blade
PHP35-CB15-HS For CB15U series blade
Cutting blade CB09UB-5 0.9mm dia. 45º, Supersteel Self-adhesive marking film (vinyl, fluorescent, refractive), thin sheet, up to 0.25 mm thick.
CB15U-5 1.5mm dia. 45º, Supersteel Rigid or thick film or sheet, heavy paper (pattern paper, oil board), 0.25 mm to 0.5 mm thick.
CB15U-K30-5 1.5mm dia. 30º, Supersteel Rigid or thick sheet, 0.25 mm to 0.5 mm thick. Sandblast resist rubber, up to 1.0 mm thick. And also small detailed characters on marking film (up to 0.25 mm thick).
CB15UA-5 1.5mm dia. 45º, Supersteel High-intensity reflective film or harder film, up to 0.5 mm thick.
CB15UA-K30-5 1.5mm dia. 30º, Supersteel High-intensity reflective film or harder film, up to 1.0 mm thick.
Loupe PM-CT-001 Checking blade length, for PHP33 and PHP35 series
Creasing / Scoring tool CP-001 Stick type, for heavy paper
PM-CT-002 Ball on tip of stick, for curve on heavy paper
Fiber-tip pen, pen holder KF700-BK Water-based fiber-tip pen, Black
KF700-RD Water-based fiber-tip pen, Red
PHP31-FIBER Pen holder for KF700 series pen
Adhesive sheet, Cling mat CM-0003-R1A Adhesive sheet, supplying in roll, size 545 mm x 20 m
CM-0004 Cling mat for film based materials, size 435 x 610 mm
CM-0005 Cling mat for paper based materials, size 435 x 610 mm
PM-CM-001 Cling mat for film based type material, size 660 mm x 488 mm
PM-CM-002 Cling mat for paper based type material, size 660 mm x 488 mm
Protect Sheet PM-CR-002 For protecting the writing panel of FCX4000-50ES, Transparent vinyl, thickness 0.3 mm
PM-CR-003 For protecting the writing panel of FCX4000-60ES, Transparent vinyl, thickness 0.3 mm
