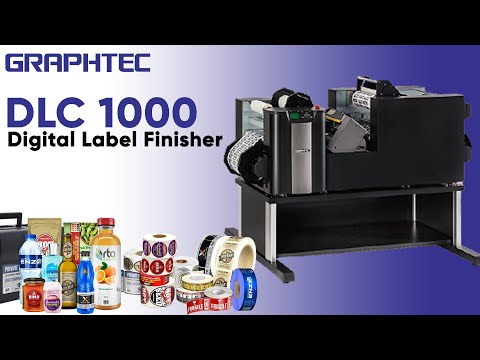

Label Maker DLC 1000

Main Features:

Finish your label printed with any printer!

Process Max. 200m roll continuously with Roll-to-roll system.

Create registration marks and operate the machine from Illustrator / CorelDRAW with standard plug-in software Cutting Master for DLC.

Cutting plotter installed – cutting dies unneeded.

Laminate and Slit your work.

Cross cut your work to sheet.

Max. media width: 216mm

  • DESCRIPTION
  • SPECIFICATIONS
DESCRIPTION

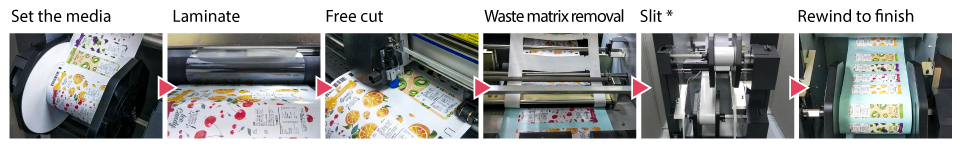

Label making workflow

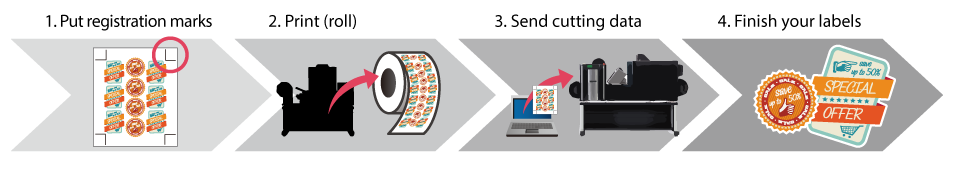

Cutting Master for DLC

Easily create DLC1000 original registration marks

Send cutting data to DLC1000

Supports Illustrator / CorelDRAW

Supports 10 languages

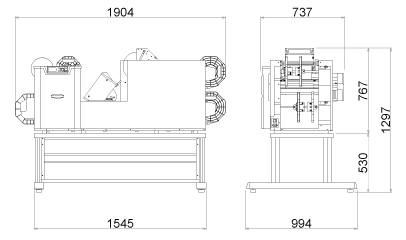

Dimensions

SPECIFICATIONS
Item Description
Feeding unit Loadable media width Maximum: 216 mm, Minimum: 100 mm
Page size 1 page size: Maximum: 300 mm, Minimum: 76.2 mm
* Maximum 1200 mm when using Sequential Mode
Loadable media diameter Maximum: 254 mm (under 10 inch)
Inner diameter: 76 mm (3 inch core)
Loadable media weight Max. 10 kg
Laminating section Loadable media width Maximum: 195 mm, Minimum: 80 mm
Loadable media size Maximum length: 200 mm OR outside diameter under 210 mm
Inner diameter: 76 mm (3 inch core)
Windable media diameter Maximum outside diameter: 200 mm
Inner diameter: 25.4 mm (1 inch core), Core length: 227 mm
Loadable media weight Max. 8 kg
Cutting section Cutout system Half cutting by cutting plotter (super steel)
Drive system Digital servo
Cutting force 0.2 – 2.9 N (20 – 300 gf) : 31 steps
Maximum cutting area WITH R. MARK : 186 mm x 1200 mm
NO R. MARK : 203 mm x 300 mm (Slitter cannot be used.)
Maximum cutting speed 600 mm/s
Separating section Windable media diameter (*1) Maximum: 220 mm
Inner diameter: 25.4 mm (1 inch core), Core length: 227 mm
Slitting section Slitter 3
Cross cutting section Cut Cross cut
Winding section 1 Windable media width Maximum: 216 mm, Minimum: 55 mm
Windable media diameter (*1) Maximum: 254 mm
Inner diameter: 76 mm (3 inch core)
Windable media weight Max. 14 kg (*1)
Winding section 2 Windable media width Maximum: 108 mm, Minimum: 55 mm
Windable media diameter (*1) Maximum: 220 mm
Inner diameter: 76 mm (3 inch core)
Windable media weight Max. 7 kg (*1)
Main Unit Specifications Interface USB2.0 (High Speed), Network (Ethernet 10BASE-T / 100BASE-TX)
LCD display Graphic Type (128 dots x 64 dots)
Power source AC100-120V, AC200-240V, 50/60Hz (Automatic changeover)
Power consumption Max. 170VA
Operating environment 10 – 35℃, 35 – 75% R.H. (non-condensing)
Guaranteed accuracy environment 16 – 32℃, 35 – 70% R.H. (non-condensing)
External dimensions (approx.) 1904 (W) × 994 (H) × 1297 (D) mm
Weight (approx.) 151kg
