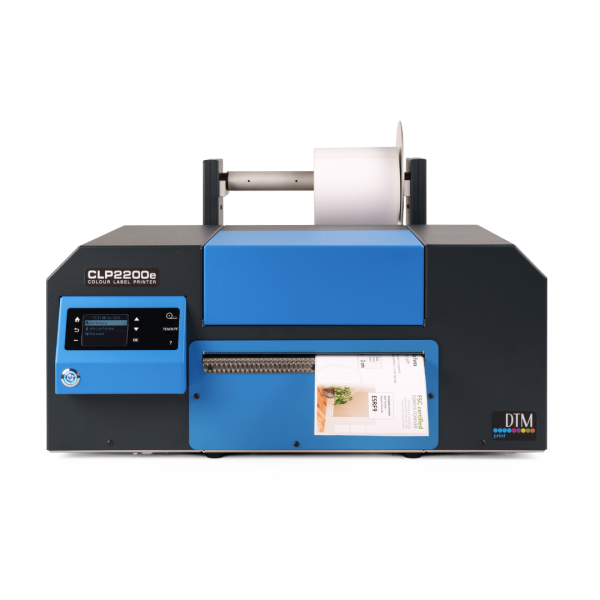

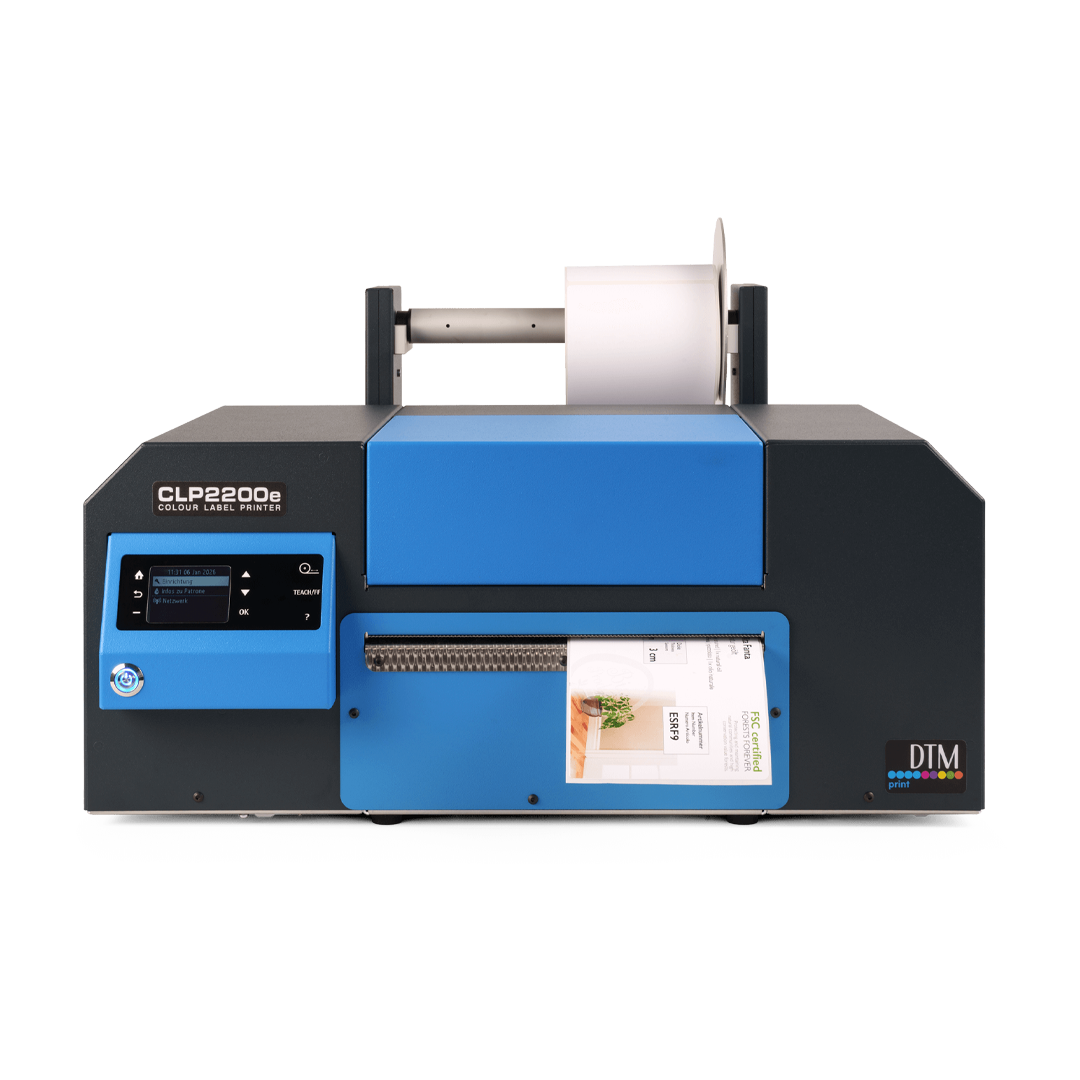

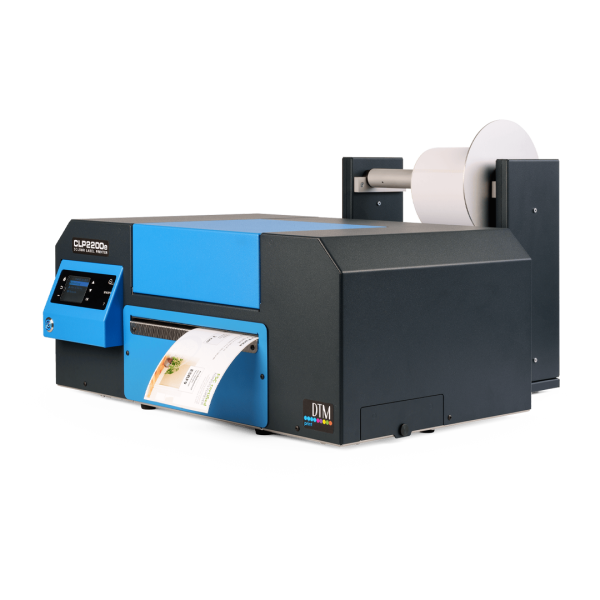

CLP2200e Colour Label Printer

The CLP2200e Colour Label Printer is designed for businesses that require on-demand, full-colour labels with exceptional durability and flexibility. It features large, separate ink cartridges for cyan, magenta, yellow and black as well as a user-replaceable printhead and supports both dye and pigments inks. It combines industrial-grade reliability with user-friendly operation, making it ideal for production environments, logistics and custom branding.

Key Facts

Brilliant colour output

Fast printing speed: up to 135 mm (5.2") per second

Holds large rolls of up to 250 mm (9.84") outer diameter

Individual, large ink cartridges – 78 ml black and 26 ml colour

Wired ethernet for network connection

Prints up to 210 mm wide

Contact Us
Download Brochure
  • OVERVIEW
  • SPECIFICATIONS
OVERVIEW

Smart Printing, Maximum Flexibility

With separate cyan, magenta, yellow and black ink cartridges, you only replace the colour you need – ideal for layouts where one shade dominates. Thanks to the user-replaceable printhead, switching between dye and pigment inks is quick and simple, ensuring adaptability for diverse applications. The compact, accessible design fits any workspace, simplifies maintenance and supports a print width of up to 210 mm.

What’s Included in the Box

Starter label roll 152.4 mm × 101.6 mm (6" × 4")

DTM Paper Semi Gloss (Dye)orMatte (Pigment)

1 user-replaceable printhead (Dye or Pigment)

Full set of CMYK ink cartridges (Dye or Pigment)

All required cables for setup and operation

Complete installation and user instructions

Free label design software for Windows

SPECIFICATIONS
Print Method Thermal inkjet with dye or pigment ink
Print Resolution 1200 × 2400 dpi
Print Speeds Up to 132 mm (5.2") per second
Inks Individual cartridges for cyan, magenta, yellow and black
Printhead User replaceable, multi-use printhead
Colours 16.7 million
Colour Matching Standard Colour Matching
Print Width 20 mm – 210 mm (0.78" – 8.25")
Media Width 30 mm – 212 mm (1.18" – 8.375")
Print Length max. 1219.20 mm (48")
Media Types Roll-fed pressure-sensitive labels, roll-fed tags, fan-fold labels or tags
Media Sensing Moveable see-through sensor for die-cut labels; reflective sensor for labels and tags with black mark (bottom); can use continuous and pre-printed labels and tags
Media Feed External
Supply Roll 250 mm (9.84") maximum outer diameter on 76 mm (3") core
Ink Level Warning Calculates actual number of prints remaining based upon ink usage of graphics being printed.
Operating Systems Windows 7 and higher
Data Interface/Connections USB 2.0, wired Ethernet, 24 V PLC
Label Design Software NiceLabel Free DTM Edition and BarTender UltraLite DTM Edition*
Power Requirements 100 V – 240 V AC (50/60 Hz), 32 V DC, 50 W
Certifications CE, RoHs
Weight 15 kg
Dimensions (W × H × D) 486 mm × 207 mm × 330 mm
Available Versions CLP2200e with dye-based ink (CLP22-101)
CLP2200e with pigment ink (CLP22-103)
What's in the Box CLP2200e Colour Label Printer, a set of CMYK inks, a user-replaceable printhead, CLP2200e Unwinder, one 152.4 mm × 101.6 mm (6" × 4") DTM Paper Semi Gloss (dye) or DTM Paper Matte (pigment) starter roll, USB 2.0 cable, EU power cord and instructions**
Warranty 36 months (after product registration, for devices purchased in EU/EFTA countries and UK)
Manufacturer DTM Print GmbH
