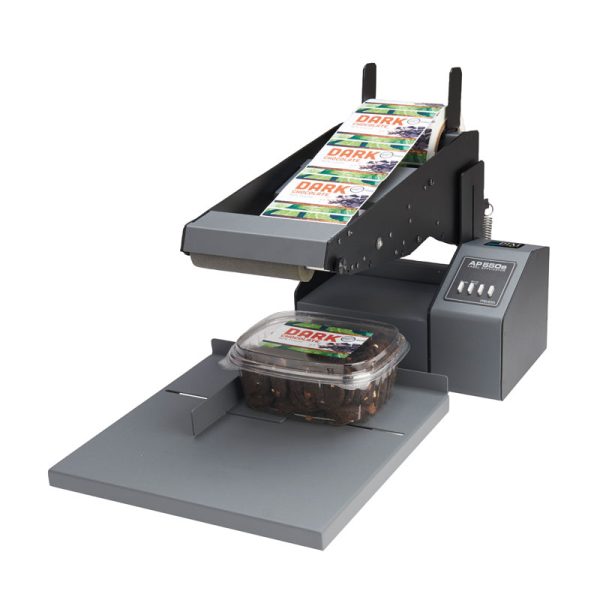

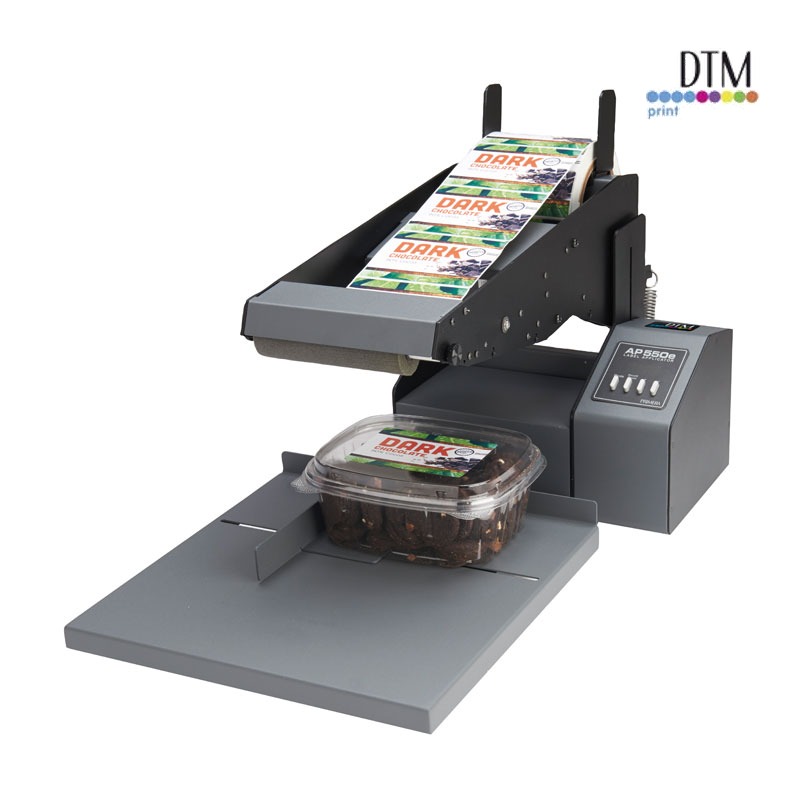

AP550e Flat-Surface Applicator
Specifications AP550e Label Applicator
Related Products
Get in touch
Sign up to get the latest news, updates and informative
content delivered to your inbox.
Phone
+971 6 55 799 29
multisys@eim.ae
Address
H2-006, SAIF ZONE, United Arab Emirates
Container Platform: 305 x 310 mm * (12” W x 12.2” D)
Container Height: .05 mm to 203 mm ** (.002″ to 8″)
Container Shape: Flat, tapered
Label Width: 19 mm to 101.6 mm (.75” to 4”)
Label Height: 19 mm to 152.4 mm (.75” to 6”)
Liner Thickness: 2 mil – 10mil (smoothness will affect feeding – a liner that is too slippery or too thin will slip through the drive rollers)
Label + Adhesive Thickness: 5 mil – 15 mil***
| Container Platform | 305 x 310 mm * (12” W x 12.2” D) |
| Container Height | .05 mm to 203 mm ** (.002″ to 8″) |
| Container Shape | Flat, tapered |
| Label Width | 19 mm to 101.6 mm (.75” to 4”) |
| Label Height | 19 mm to 152.4 mm (.75” to 6”) |
| Label Liner Width | 22.2 mm to 104.8 mm (.875” to 4.125”) |
| Label Placement | Leading edge up to 203 mm (8”) from trailing container edge |
| Label Roll Diameter | 203 mm (8”) (maximum) |
| Label Roll Core | 50.8 mm to 76.2 mm (2” to 3”) ID |
| Sensor Type | Optical Sensor |
| Electrical Rating | 12 VDC, 5.0 A |
| Power Requirements | 100-240 VAC, 50/60 Hz, 60 watts |
| Agency Certifications | UL, UL-C, CE, FCC Class A |
| Weight | 10.9 kg |
| Dimensions | 305 x 541 x 256–391 mm (12” W x 21.3” D x 10.1”–15.4” H) |
| Gap between Labels: | Recommended: 3.175mm – 6.3500mm (1/8″ – 1/4″) |
| Label Type: | Die cut with waste removed. Black mark or gap for label sensor. Clear labels must have black mark on liner. |
| Liner Thickness: | 2 mil – 10mil (smoothness will affect feeding – a liner that is too slippery or too thin will slip through the drive rollers) |
| Label + Adhesive Thickness: | 5 mil – 15 mil*** |
| Wind Direction: | Wound out – See Copy-Position Chart below (Position 3 or 4 for most containers) |
| Manufacturer: | Primera Technology, Inc. |
