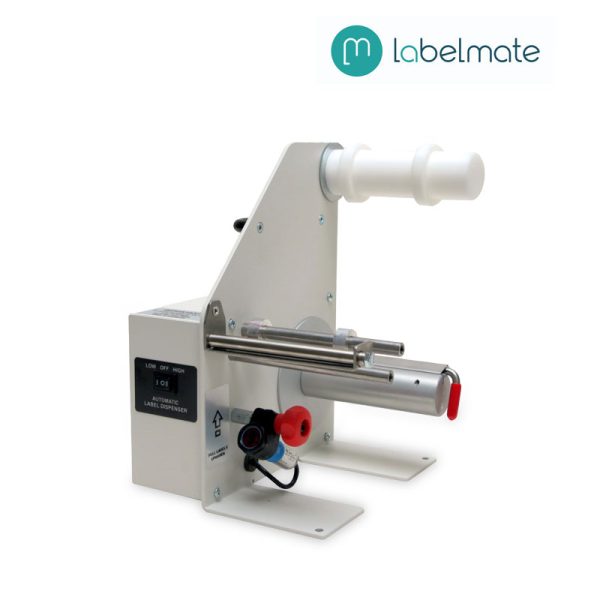

Label dispenser LD 100 RS

Label dispenser LD 100 RS

Features

Handles labels up to 115mm wide

Roll diameter capacity 220mm

Label length from 6 to 150mm

Min speed 11cm/sec

Description

The LD-100-RS uses a peel and present design with the latest opto-electronic technology to dispense individual labels. The set-up is very easy. In less than 30 seconds, there is just one simple adjustment for label length.

A special reflective sensor sits below the label and reliably senses the leading edge of you label. As the operator picks up a label, the next one is automatically and instantly advanced.

The label dispensers are equipped with 38mm core holders that accept all cores from 40 to 76mm.

External roll diameter is 220mm (265mm with AWB option and 300 with LD-DE option).

Power Supply

Input: 100-240VAC, 50Hz ; Output: 15VDC-4.33A
