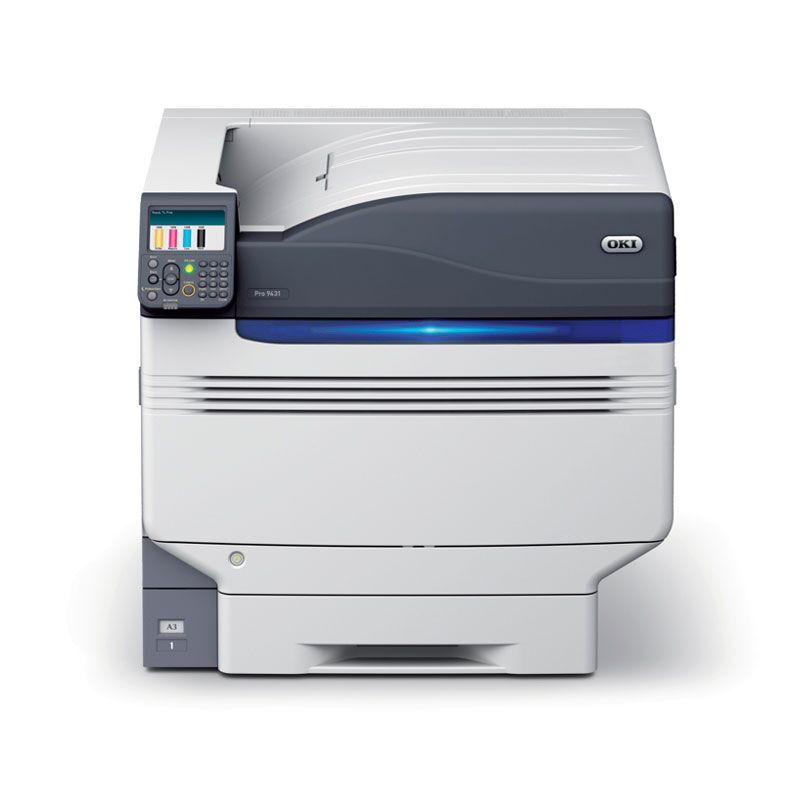

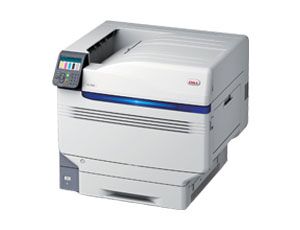

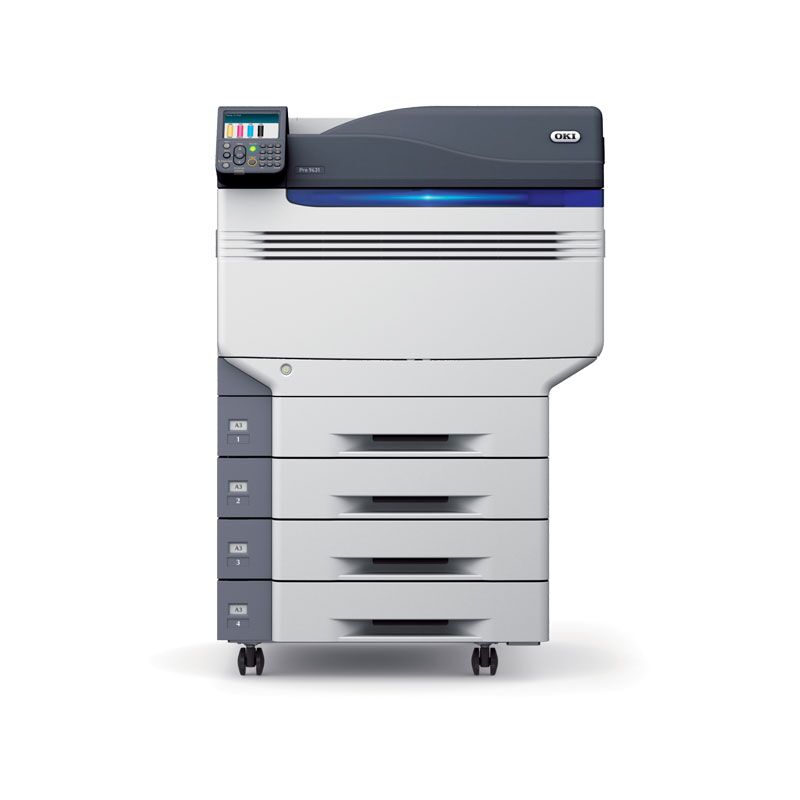

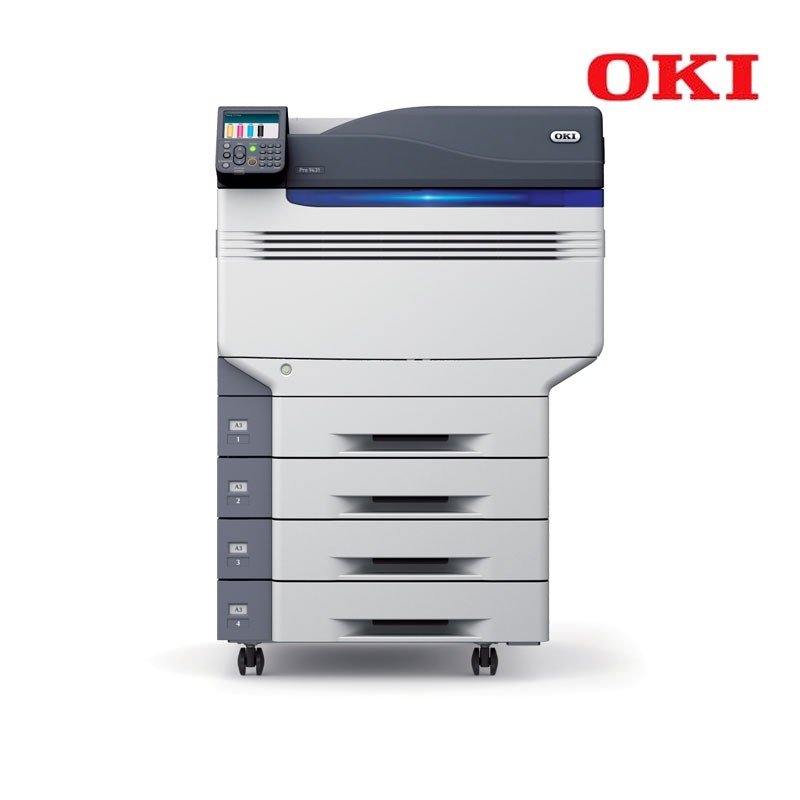

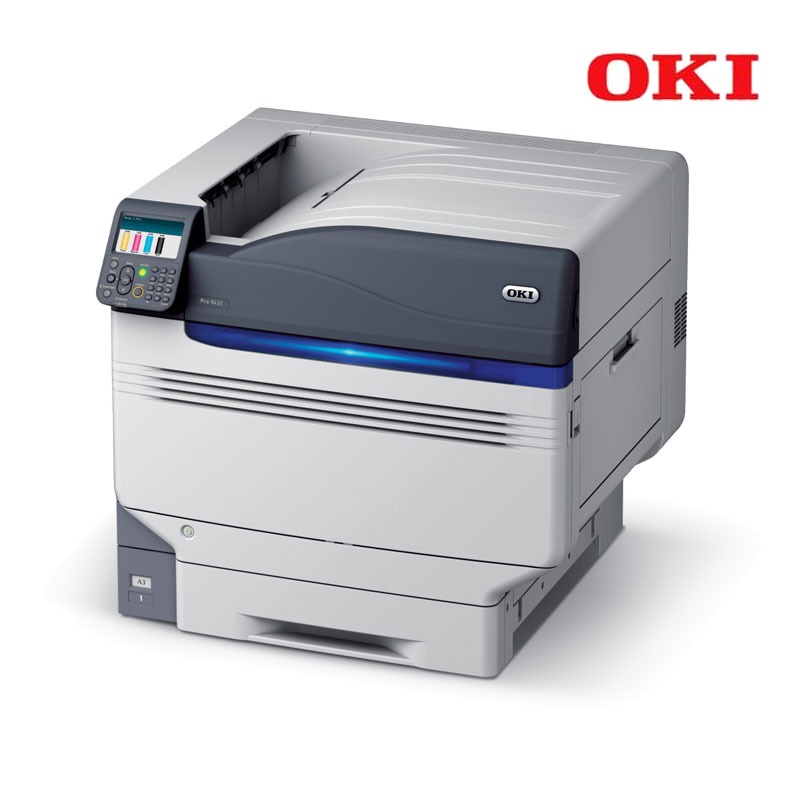

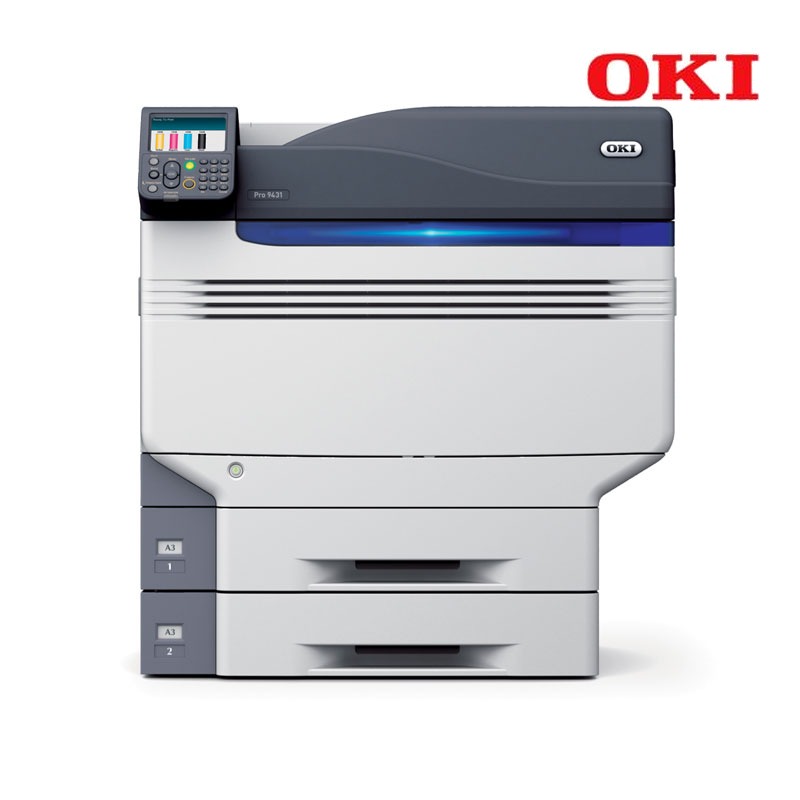

Digital Colour Label Printer — Oki Pro9431 ( CMYK )
Pro 9431 Designed to meet the requirements of the graphic and creative industries and to serve general office requirements as well. It delivers vibrant, high-quality color printing on a wide range of media, including gloss paper, film, transfer paper and waterproof paper. Flexible opportunities from office use to signage applications.
12-month warranty on labour and non-wet parts, on every brand we carry.
- Printing Technology
- Digital 4 LED Full-color Electrophotographic Printing Method
- Print Resolution
- 1200 x 1200 dpi (2 levels) · 1200 x 600 dpi (16 levels)…
- Warm-up Time
- Approx. 50.0 seconds from power-on…
- First Print Out Time
- Color: Approx. 8.0 seconds · Mono: Approx. 8.0 seconds
- Commercial print quality
- Cost efficient productivity
- Flexible opportunities from office use to signage applications.
Specifications
26 specifications, as published by LabelGraff for the Oki Pro9431 ( CMYK ).
- Printing Technology
- Digital 4 LED Full-color Electrophotographic Printing Method
- Print Resolution
- 1200 x 1200 dpi (2 levels) · 1200 x 600 dpi (16 levels) · 600 x 600 dpi (2 levels) · Physical dot pitch: 1200 dpi
- Print Speed
- A4(Landscape) 50 ppm color, 50 ppm mono · A3 28 ppm color, 28 ppm mono
- Font
- PostScript 136 fonts, PCL emulation 87 scalable fonts, 4 bitmap fonts
- Paper Size
- SRA3, SRA4, A3+, A3, A4, A5, A6, B5, B4, Tabloid extra (12″ x 18″), Tabloid (11″ x 17″), Legal 13, Legal 13.5, Legal 14, Letter, Executive, Index Card (3″ x 5″) (75 x 125mm), Statement, Envelopes, Postcard, Return postcard, Banner, B6 Half, B6, 8K, 16K, Custom Size: Width 64-330 mm x Length 89-1321 mm
- Interface
- 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed)
- Protocol
- TCP/IP, EtherTalk
- Printer Language
- PostScript 3, PCL 5c emulation, PCL 6 (XL) emulation, XPS emulation, PDF v1.7 emulation, legacy dot-matrix printer emulation modes
- Supported OS(Click here for latest OS)
- Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, OS X 10.10, OS X 10.9, OS X 10.7, Mac OS X 10.6, Mac OS X 10.5, Linux
- Memory (Std./Max.)
- 2GB/2GB
- Hard Disk Drive
- (Optional) 160 GB
- Input Capacity
- Tray 1 : 530 sheets · (Optional)Additional Tray : 530 sheets · Multi-purpose tray : 300 sheets
- Output Capacity
- Face Down : Max. 610 sheets · Face Up : Max. 300 sheets
- Warm-up Time
- Approx. 50.0 seconds from power-on · Approx. 35.0 seconds from power save
- First Print Out Time
- Color: Approx. 8.0 seconds · Mono: Approx. 8.0 seconds
- Operating Environment
- Operating: 10 – 32 °C, 20 – 80 %RH · Storage: 0 – 43 °C, 10 – 90 %RH · No condensation
- Power Source
- Single phase 230 VAC ±10%, 50/60 Hz ±2%
- Power Consumption
- Operating: Max. 1,600W / Ave. 1,100W · Idle: 40W · Power Save: 30.0W · Deep Sleep: 4.0W · Auto-Off: 0.4W
- Safety & Environment Regulation
- Energy Star, EMC-Directive, CE Mark, GS Mark, CCC Mark, cULus Mark
- Noise Level
- Operating :Approx. 57 dBA · Idle: < 34 dBA · Power Save: < 30 dBA or Background level
- Duty Cycle
- Recommended: 25,000 pages/month · Maximum: 300,000 pages/month
- Paper Weight
- Tray 1 : 52 – 320 gsm · (Optional)Additional Tray : 52 – 320 gsm · Multi-purpose tray : 52 – 360 gsm
- Dimensions(WxDxH)
- 699 x 625 x 640 mm
- Weight(includes supplies)
- Approx. 96.5 kg
- Weight(not includes supplies)
- Approx. 82.0 kg
- In the Box
- Manuals, Starter toner cartridge x 4, Image Drum x 4, Power cable, DVD-ROM
