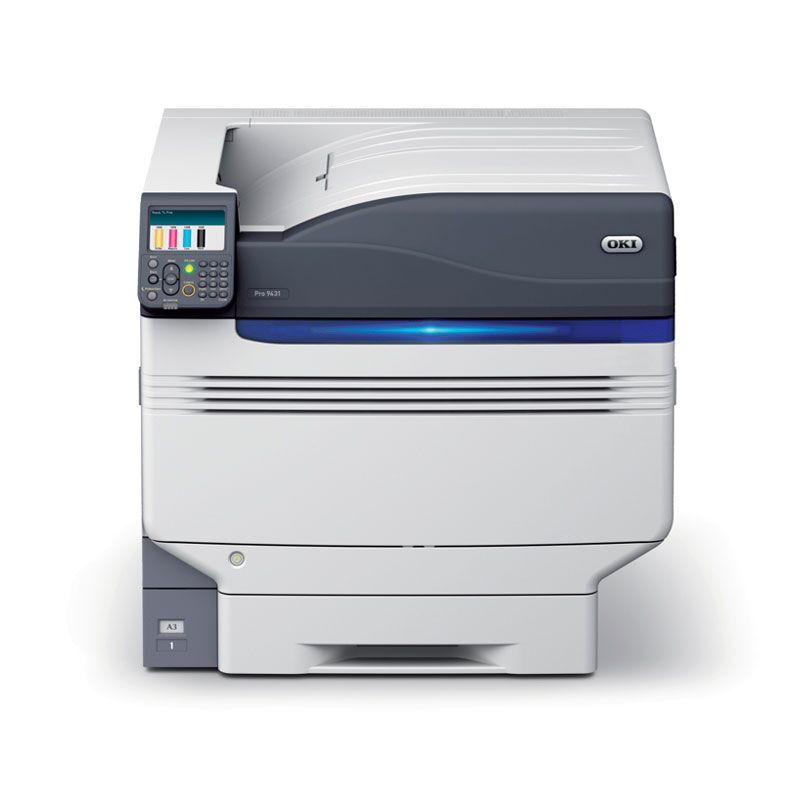

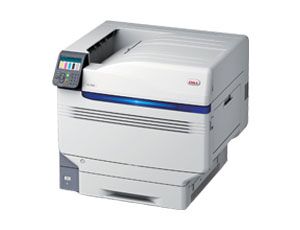

| Printing Technology | Digital 4 LED Full-color Electrophotographic Printing Method |
| Print Resolution | 1200 x 1200 dpi (2 levels)
1200 x 600 dpi (16 levels)
600 x 600 dpi (2 levels)
Physical dot pitch: 1200 dpi |
| Warm-up Time | Approx. 50.0 seconds from power-on
Approx. 35.0 seconds from power save |
| First Print Out Time | Color: Approx. 8.0 seconds
Mono: Approx. 8.0 seconds |
| Print Speed | A4(Landscape) 50 ppm color, 50 ppm mono
A3 28 ppm color, 28 ppm mono |
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed) |
| Protocol | TCP/IP, EtherTalk |
| Printer Language | Adobe PostScript 3, PCL 5c emulation, PCL 6 (XL) emulation, XPS emulation, PDF v1.7 emulation, IBM ProPrinter emulation, Epson FX Emulation |
| Supported OS (Click here for latest OS) | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, OS X 10.10, OS X 10.9, OS X 10.7, Mac OS X 10.6, Mac OS X 10.5, Linux |
| Memory (Std./Max.) | 2GB/2GB |
| Hard Disk Drive | (Optional) 160 GB |
| Font | Adobe PostScript 136 fonts, PCL emulation 87 scalable fonts, 4 bitmap fonts |
| Paper Size | SRA3, SRA4, A3+, A3, A4, A5, A6, B5, B4, Tabloid extra (12″ x 18″), Tabloid (11″ x 17″), Legal 13, Legal 13.5, Legal 14, Letter, Executive, Index Card (3″ x 5″) (75 x 125mm), Statement, Envelopes, Postcard, Return postcard, Banner, B6 Half, B6, 8K, 16K, Custom Size: Width 64-330 mm x Length 89-1321 mm |
| Paper Weight | Tray 1 : 52 – 320 gsm
(Optional)Additional Tray : 52 – 320 gsm
Multi-purpose tray : 52 – 360 gsm |
| Input Capacity | Tray 1 : 530 sheets
(Optional)Additional Tray : 530 sheets
Multi-purpose tray : 300 sheets |
| Output Capacity | Face Down : Max. 610 sheets
Face Up : Max. 300 sheets |
| Dimensions(WxDxH) | 699 x 625 x 640 mm |
| Weight(includes supplies) | Approx. 96.5 kg |
| Weight(not includes supplies) | Approx. 82.0 kg |
| Operating Environment | Operating: 10 – 32 °C, 20 – 80 %RH
Storage: 0 – 43 °C, 10 – 90 %RH
No condensation |
| Power Source | Single phase 230 VAC ±10%, 50/60 Hz ±2% |
| Power Consumption | Operating: Max. 1,600W / Ave. 1,100W
Idle: 40W
Power Save: 30.0W
Deep Sleep: 4.0W
Auto-Off: 0.4W |
| Safety & Environment Regulation | Energy Star, EMC-Directive, CE Mark, GS Mark, CCC Mark, cULus Mark |
| Noise Level | Operating :Approx. 57 dBA
Idle: < 34 dBA
Power Save: < 30 dBA or Background level |
| Duty Cycle | Recommended: 25,000 pages/month
Maximum: 300,000 pages/month |
| In the Box | Manuals, Starter toner cartridge x 4, Image Drum x 4, Power cable, DVD-ROM |
