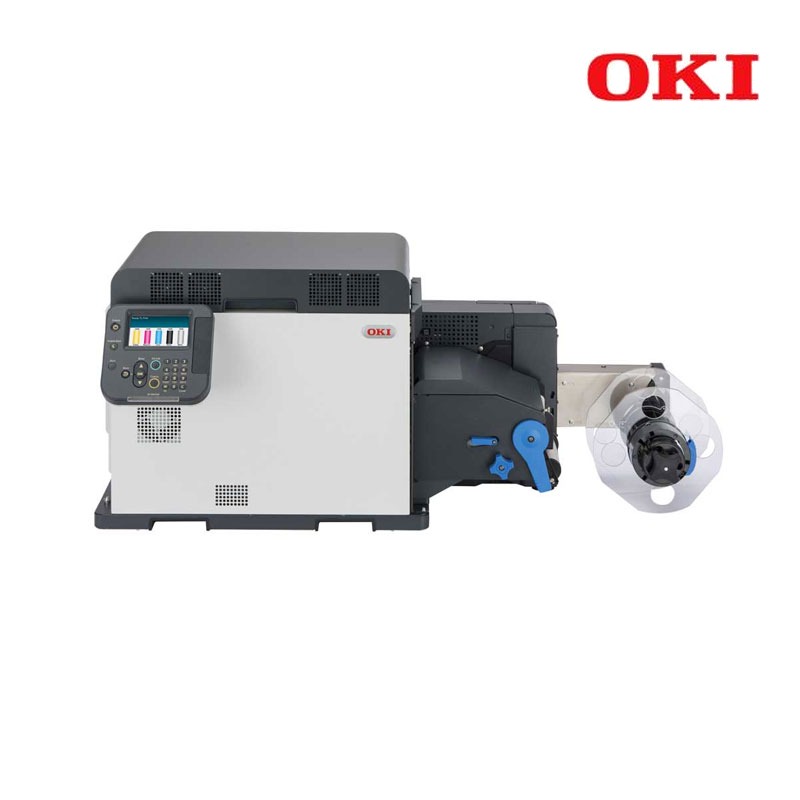

Pro1040 Label Printer
The Pro1040 Label Printer offers professional four colour narrow-format printing across a variety of different label media including textured papers and synthetics. A new way to enhance business with short run colour label printing services on-demand, in-house. On-demand, short-run colour label printing capability that drives new revenue streams
12-month warranty on labour and non-wet parts, on every brand we carry.
- Printing Method
- Digital 4 LED Full-color Electrophotographic Printing Method
- Media Format
- Roll
- Media Type
- Plain Paper, Film, Plain Paper Label, Glossy Paper Label…
- Media Width
- 29.64 – 130.0mm
- On-demand, short-run colour label printing capability that drives new revenue streams
- Generates eye-catching Labels
- Media flexibility makes it easy to print on a huge range of label media
- Produce labels that water/chemical and UV fading resistant
- No need for proofing; print creative label designs in the exact quantity you need
- Set up new jobs in minutes
- Multiple uses from product labelling to food, beverage, cosmetic, electrical device and horticulture, the opportunities are endless
- On demand printing on different media including paper and synthetic film
Specifications
32 specifications, as published by LabelGraff for the Pro1040 Label Printer.
- Printing Method
- Digital 4 LED Full-color Electrophotographic Printing Method
- Media Format
- Roll
- Media Type
- Plain Paper, Film, Plain Paper Label, Glossy Paper Label, Film Label, Synthetic paper Label
- Media Width
- 29.64 – 130.0mm
- Media Thickness
- 0.076 – 0.25mm
- Label Length
- 12.7 – 1,320.8mm
- Label Width
- 25.4 – 125.76mm
- Media Detection
- Gap · Black Mark (printed on back of liner) · None
- Roll Outer Diameter
- Max. Ф203.2mm (Ф8″)
- Core Inner Diameter
- Ф76.2mm (Ф3″)
- Roll Wind Direction
- Face-out, Face-in
- Print Width
- Max. 125.76mm
- Minimum Print Margin
- Top:2.12mm · Bottom:2.12mm · Right:2.12mm · Left:2.12mm
- Cuttable Media Length
- Min. 101.6mm
- Print Resolution
- 1200 x 1200 dpi · 600 x 600 dpi
- Print Speed
- Max. 152.4mm/s (6ips)
- Font
- Adobe PostScript 136 fonts, PCL emulation 81 scalable fonts, 4 bitmap fonts
- Media Sensors
- Position adjustable Transmission Gap Sensor · Position adjustable Reflective Black Mark (printed on back of liner) Sensor
- Auto Cutter
- Rotary blade Full cut
- Interface
- 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed)
- Protocol
- TCP/IP
- Printer Language
- PCL 5c emulation, PCL 6 (XL) emulation, Adobe PostScript 3
- Supported OS
- Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64
- Processor
- ARM CPU 1.2 GHz
- Memory (Std./Max.)
- 2048 MB / 2048 MB
- Hard Disk Drive
- 250 GB
- Operating Environment
- Operating: 10 – 30 °C, 20 – 70 %RH · Storage: -10 – 43 °C, 10 – 90 %RH · No condensation
- Power Consumption
- Operating: Max. 1,200W / Ave. 710W · Idle: 27W · Power Save: < 25.0W
- Dimensions(WxDxH)
- 1,040 x 477 x 441 mm
- Weight (includes supplies)
- Approx. 61.0 kg
- Unit Life
- 5 Years or 500 km
- In the Box
- DVD-ROM, DVD-ROM (BarTender UltraLite Edition), Power cable
