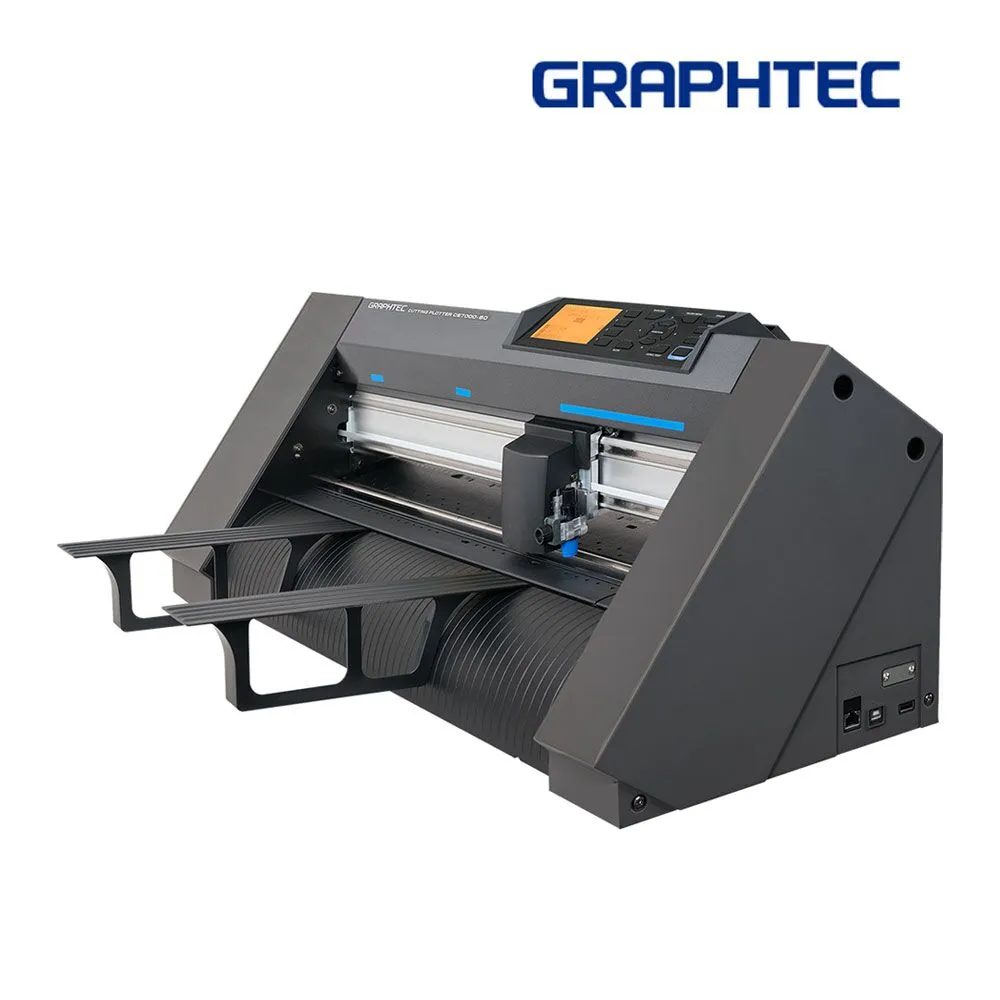

| Configuration |
Grit roller with digital servo drive system |
| Maximum Cutting Area (W x L) |
15″ x 164′ |
| Cutting area of Guaranteed Accuracy (W x L) |
14″ x 79″ |
| Mountable media width |
2″ – 19″ |
| Number of push rollers |
2 rollers |
| Maximum cutting speed |
24″/s, in all directions |
| Maximum acceleration |
69.6′ (21.2 m/s2), at 45º direction |
| Maximum cutting force |
4.41 N (450 gf) in 38 steps |
| Minimum character size |
Approx. 5 mm (0.016″) alphanumeric (depending on character font and type of media) |
| Programmable resolution |
GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm |
| Repeat-ability |
Max. 0.1 mm in plot up to 2 m (*1) |

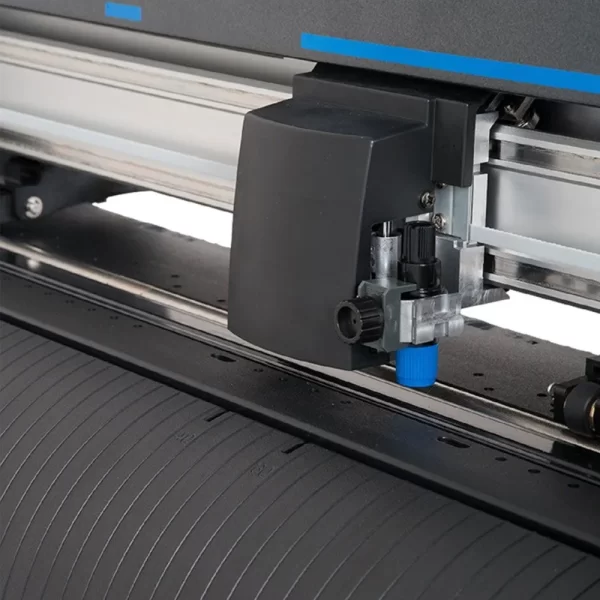

| Mountable number of tools |
1 tool |
| Blade type |
Supersteel |
| Pen type |
Oil-based ballpoint, Water-based fiber-tip pen |

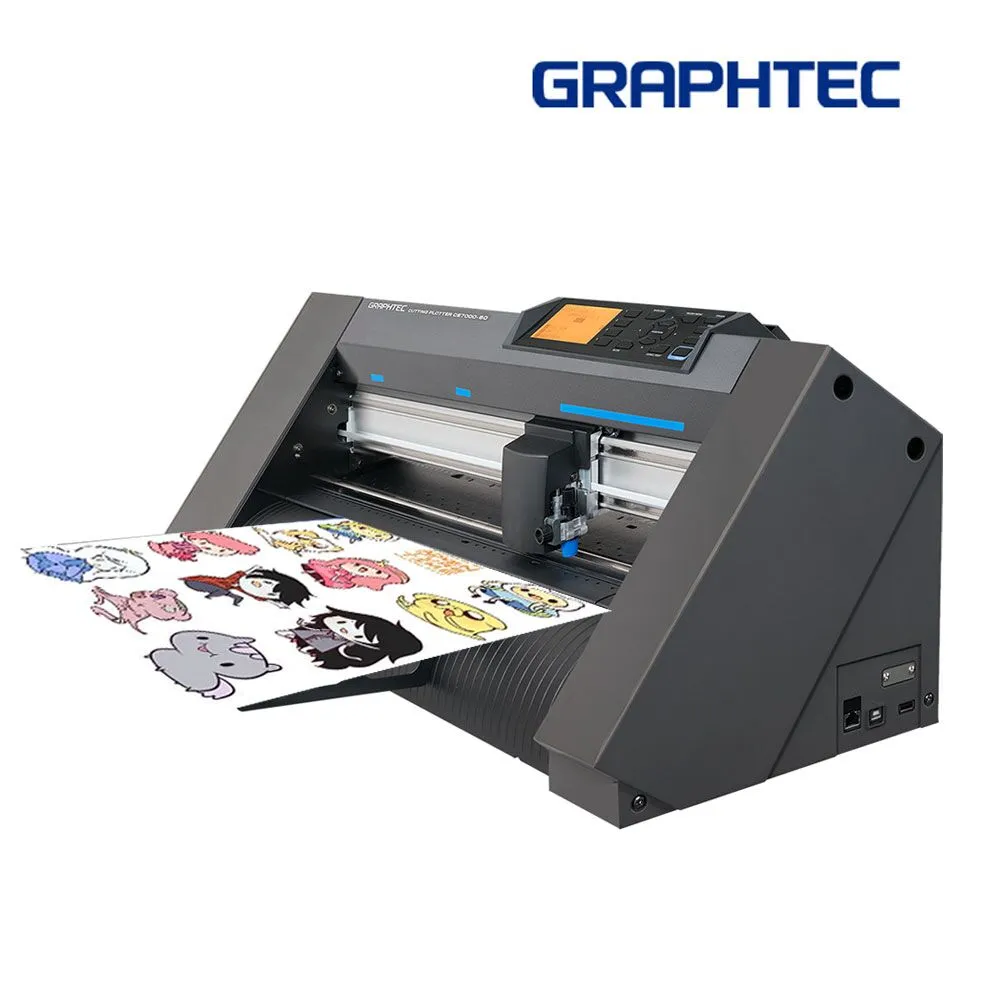

| Media type |
Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film
up to 25 mil (.63mm), Stencil material |
| Interface |
USB 2.0 (Full Speed), Ethernet
10BASE-T/100BASE-TX |
| Buffer memory |
2 MB |
| Command sets |
GP-GL / HP-GL™ (Set by command or auto-detect) |

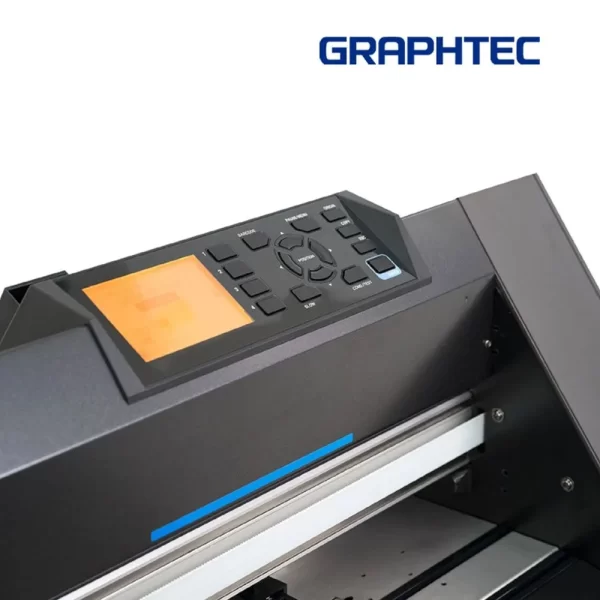

| Display |
Graphic type LCD with back-light (240dots x 128dots), supports 10 languages |
| Registration Mark Sensing System |
Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation,
4-points axis alignment, Auto mark detection |
| Alignment accuracy |
Maximum 0.3 mm with printed image (when reading registration marks specified by this machine) |
| Power source |
100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz |
| Power consumption |
120 VA |
| Operating environment |
10 to 35 ºC, 35 to 75 % R.H. (non-condensing) |
| Guaranteed accuracy environment |
16 to 32 ºC, 35 to 70 % R.H. (non-condensing) |
External dimensions
(W x D x H) |
Approx. 30.4″ x 11.5″ x 12.3″ |
| Weight (Approx) |
27.7 lbs (13kg) |
| Compatible OS (*2) |
Windows 10 / 8.1 / 7
Mac OSX 10.6 – 11.2 |
| Included software |
Cutting Master 4, Graphtec Pro Studio (for Windows), Graphtec Studio (for Mac),
Windows driver
|
| Compatibility Standards
Safety
EMC
|
PSE,
UL/cUL, CE markVCCI Class A, FCC
Class A, CE mark
|
