XpertJet 1682UR

LX610e CMY: All-in-One Full-Color Label Printer and Digital Cutter

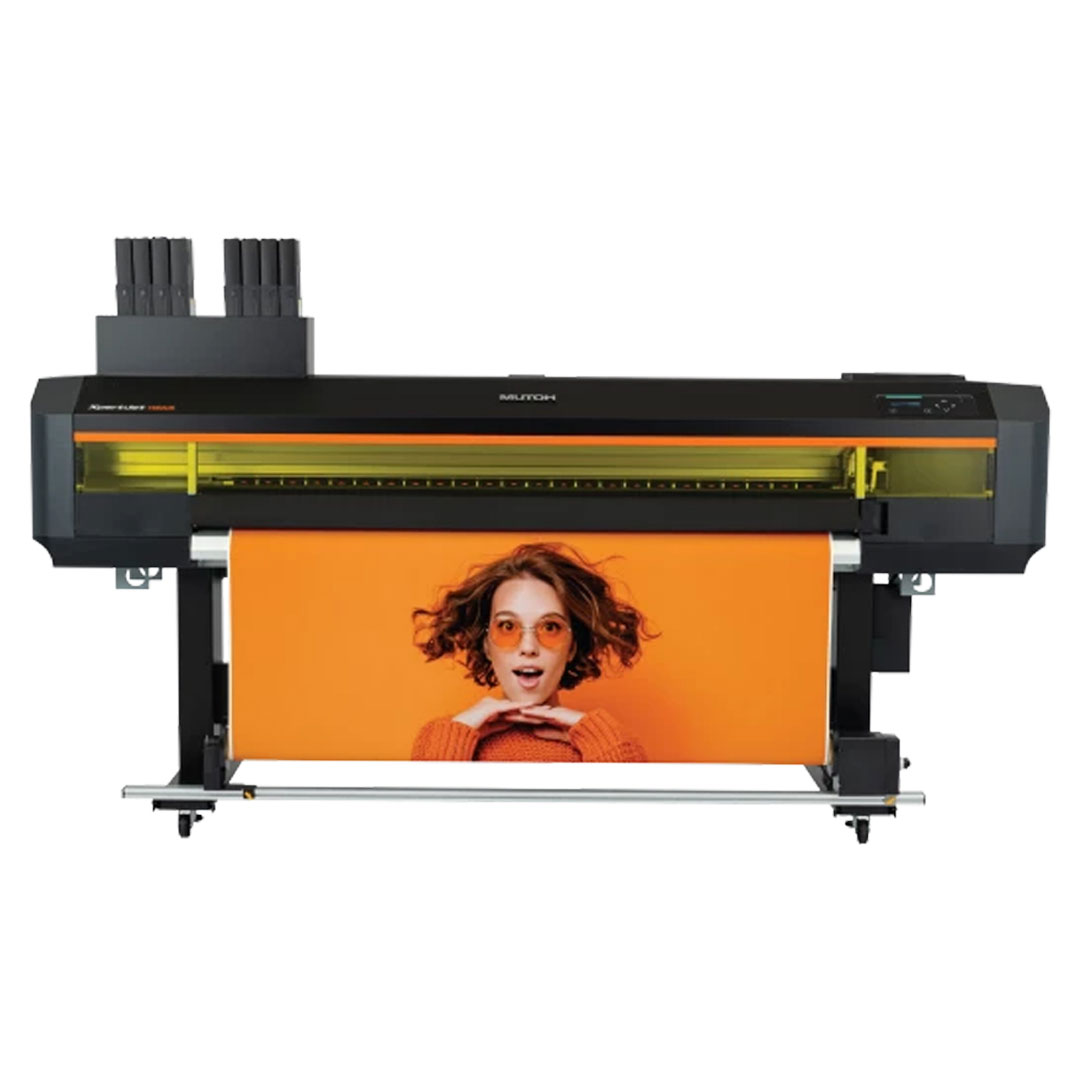

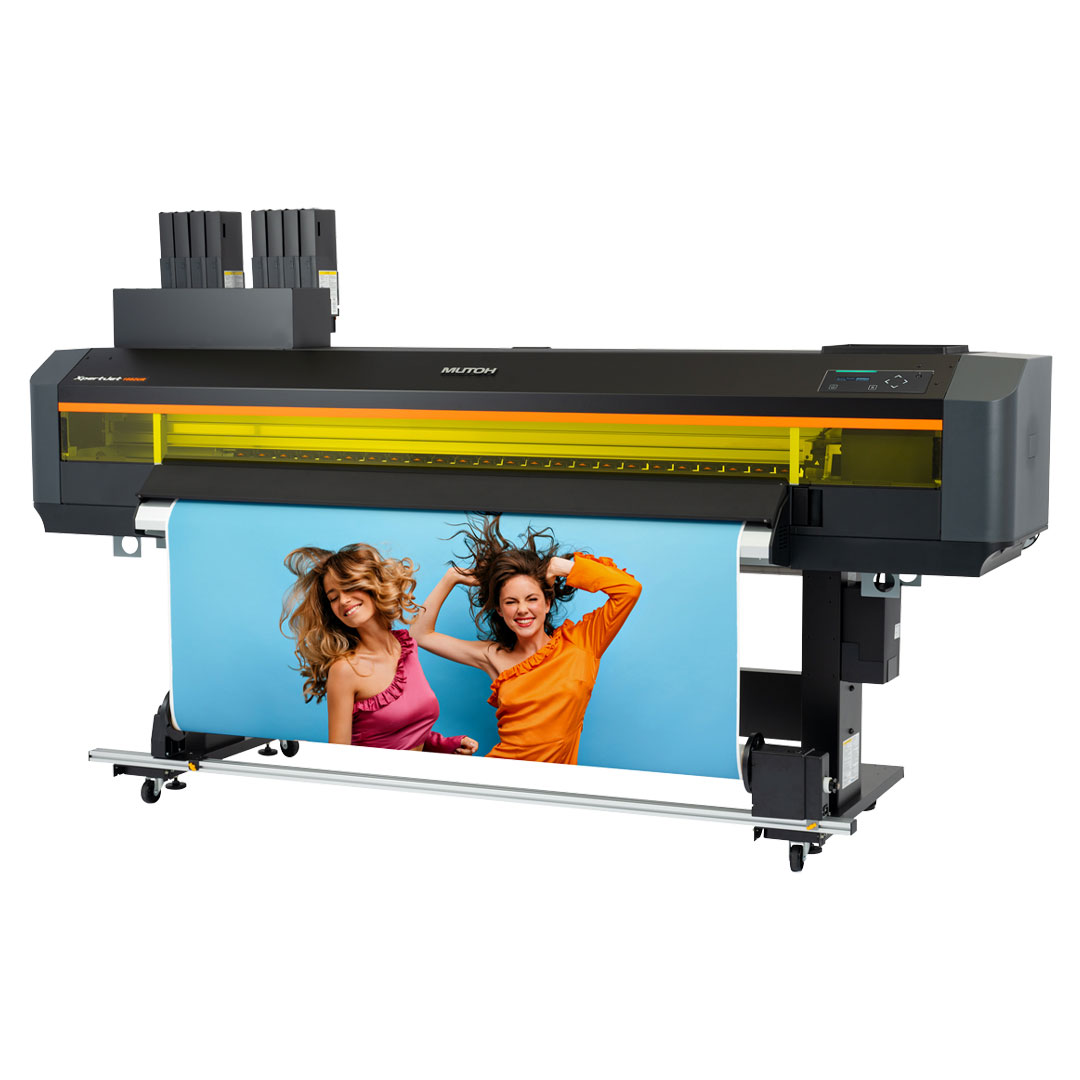

The XpertJet 1682UR is a 64” (162 cm) high-performance UV LED printer, using MUTOH’s environmentally-responsible and safe US61 CMYK, White and Varnish inks. It offers high productivity (up to 27.3 m²/h) with outstanding image quality up to 1440 x 1440 dpi.

Key Features of the LX610e CMY Label Printer

C, M, Y, K, Wh, Va UV LED printer

Two 1440 nozzle heads and two 4” UV LED lamps

Speeds up to 27.3 m²/h

Single pass 5 layer printing without media pull back

Backlit/frontlit combi & gloss embellishment graphics

High level of user comfort – multiple automated calibrations

Environmentally responsible and safe GREENGUARD Gold certified inks

Download the Brochure
Get a Quote
Contact us
  • Technical Key Specifications
  • Media Specifications
  • INK Specifications
Technical Key Specifications
Print Technology Drop-on-demand micro piezo inkjet
Print head 2 - staggered setup
Nozzle Configuration 180 nozzles x 8 lines (each head)
Print Resolutions Up to 1440 x 1440 dpi
Drop Mass Range (pl) 3.8 to 28 pl
Head Heights Low: 1.5 mm / Middle: 2.0 mm / High: 2.5 mm
Media Specifications
Max. Media width 1625 mm – 64”
Max. Print Width 1615 mm – 63.58”
Max. Media Thickness 0.3 mm / 0.8 mm / 1.3 mm
Media Measurements Measurements Standard non motorized roll off system: Ø 200 mm / 2” and 3” / 30 kg
Take-up Systems 30 kg – start/stop linked to printing – roll up Ø 150 mm 40 kg – stepless speed adjust – roll up Ø 250 mm
INK Specifications
Ink Type US61 series flexible UV LED inks
Ink Volume / Colours C, M, Y, K, White, Varnish : Pack - 800 ml
