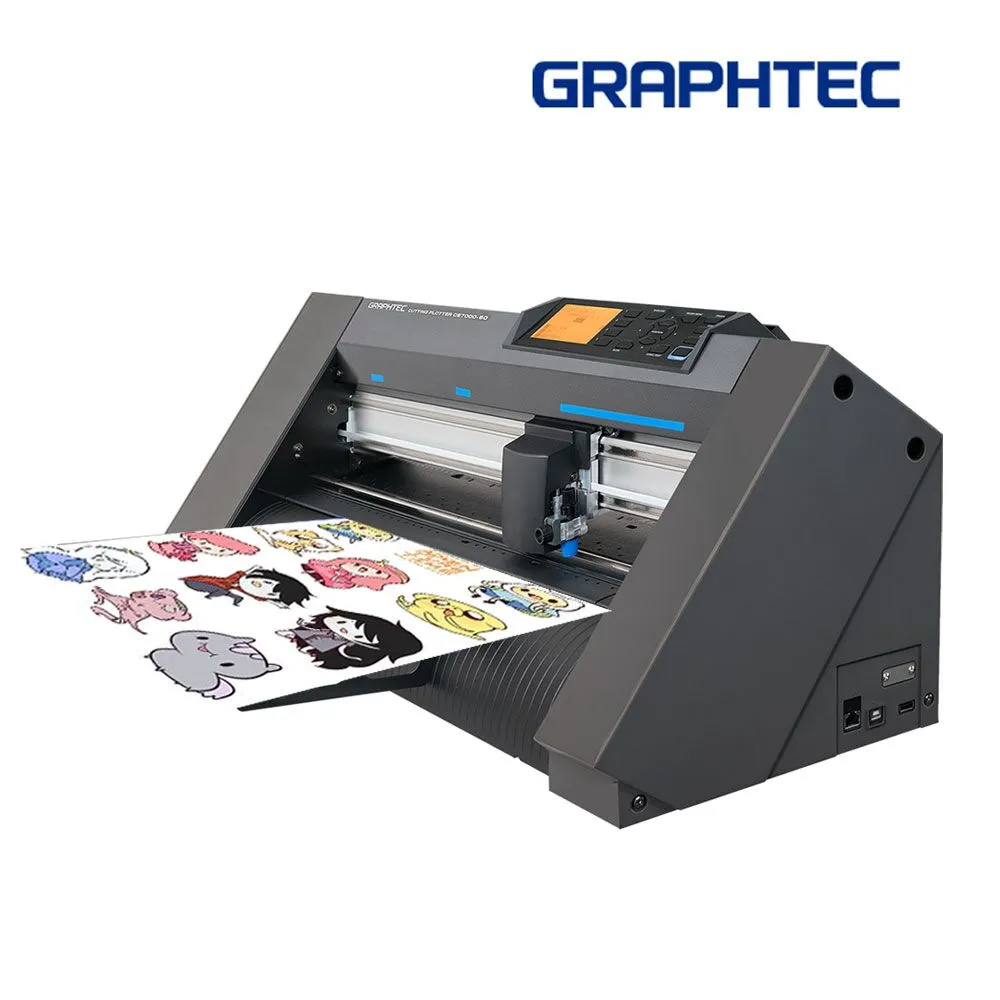

Graphtec CE7000-40
New 8.0 ARMS for Fast, Accurate Print & Cut Applications with XY Compensation
Data Link Bar Code Feature for Maximum Productivity
NEW Easy-to-use USB Thumb Drive Connectivity – NO Computer Needed!
- DESCRIPTION
- SPECIFICATIONS
- ACCESSORIES

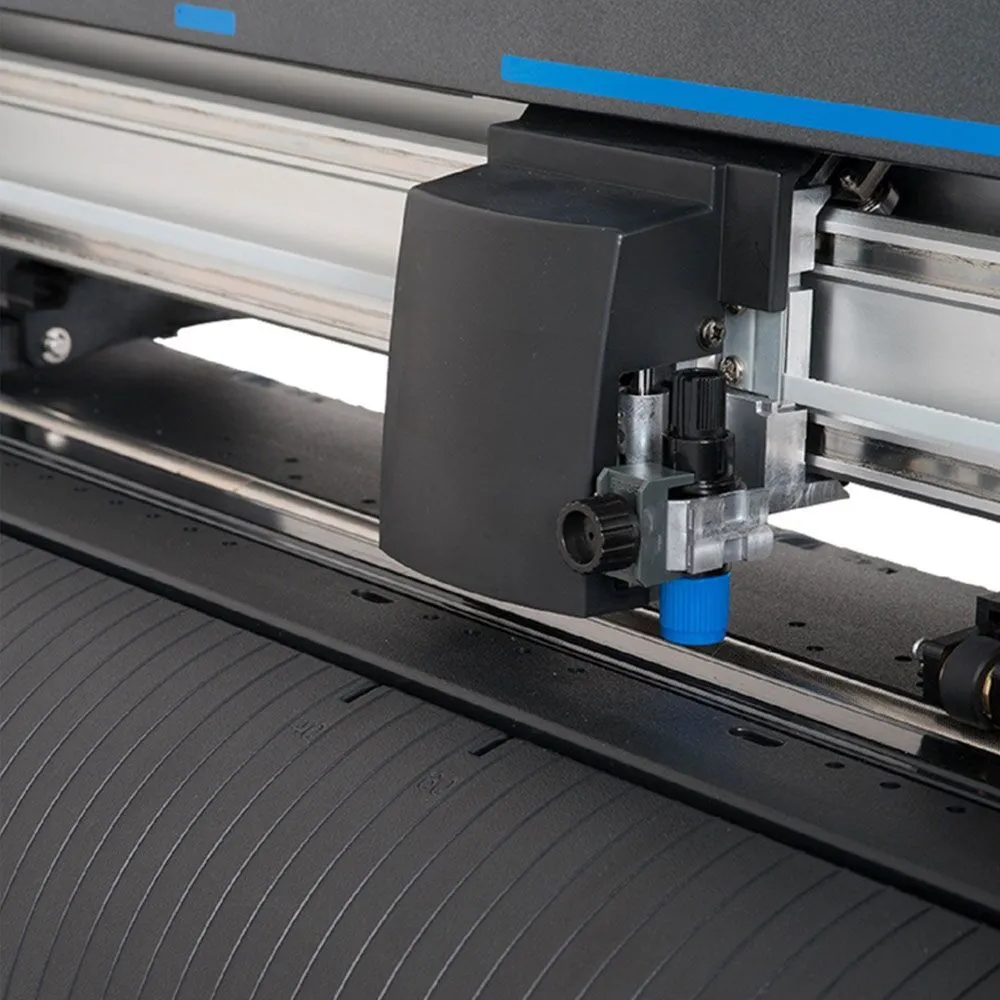

The CE7000-40 boasts our Popular Cutting Channel to allow easy perforated cut or through cut operations.
The CE7000-40 comes complete with our full complement of Graphtec Software along with our NEWLY ADDED Ethernet Connectivity. Software includes Cutting Master 4 plug-in for Adobe & Corel Users and our popular Graphtec Pro Studio software for design & cut graphics. The CE7000-40 works with both PC and MAC platforms, or use the handy New USB Thumb Drive Port if needed.
| ITEM | DESCRIPTION |
|---|---|
| Configuration | Grit roller with digital servo drive system |
| Maximum Cutting Area (W x L) | 15″ x 164′ |
| Cutting area of Guaranteed Accuracy (W x L) | 14″ x 79″ |
| Mountable media width | 2″ – 19″ |
| Number of push rollers | 2 rollers |
| Maximum cutting speed | 24″/s, in all directions |
| Maximum acceleration | 69.6′ (21.2 m/s2), at 45º direction |
| Maximum cutting force | 4.41 N (450 gf) in 38 steps |
| Minimum character size | Approx. 5 mm (0.016″) alphanumeric (depending on character font and type of media) |
| Programmable resolution | GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm |
| Repeat-ability | Max. 0.1 mm in plot up to 2 m (*1) |
| Mountable number of tools | 1 tool |
| Blade type | Supersteel |
| Pen type | Oil-based ballpoint, Water-based fiber-tip pen |
| Media type | Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film up to 25 mil (.63mm), Stencil material |
| Interface | USB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX |
| Buffer memory | 2 MB |
| Command sets | GP-GL / HP-GL™ (Set by command or auto-detect) |

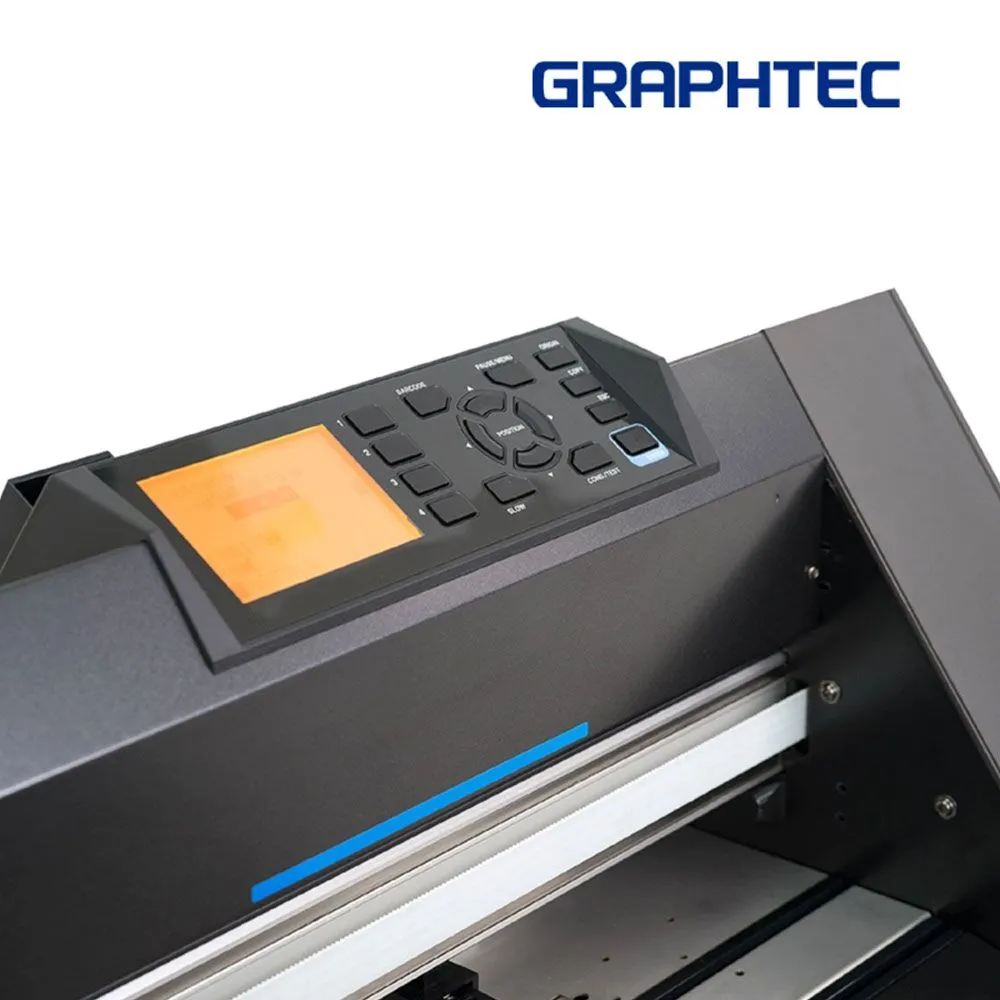

| Display | Graphic type LCD with back-light (240dots x 128dots), supports 10 languages |
| Registration Mark Sensing System | Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detection |
| Alignment accuracy | Maximum 0.3 mm with printed image (when reading registration marks specified by this machine) |
| Power source | 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz |
| Power consumption | 120 VA |
| Operating environment | 10 to 35 ºC, 35 to 75 % R.H. (non-condensing) |
| Guaranteed accuracy environment | 16 to 32 ºC, 35 to 70 % R.H. (non-condensing) |
| External dimensions (W x D x H) |
Approx. 30.4″ x 11.5″ x 12.3″ |
| Weight (Approx) | 27.7 lbs (13kg) |
| Compatible OS (*2) | Windows 10 / 8.1 / 7 Mac OSX 10.6 – 11.2 |
| Included software | Cutting Master 4, Graphtec Pro Studio (for Windows), Graphtec Studio (for Mac), Windows driver |
| Compatibility Standards
Safety
EMC
|
PSE,
UL/cUL, CE markVCCI Class A, FCC
Class A, CE mark
|
| ITEM | Qty | DESCRIPTION |
|---|---|---|
| Power cord | 1 | The type of cord is different by destination |
| USB Cable | 1 | 9.5 feet long |
| Cutting blade holder | 1 | PHP33-CB09N-HS |
| Cutting Blade | 1 | CB09UB |
| Loupe | 1 | PM-CT-001 |
| Fiber-tip pen holder | 1 | PHP31-FIBER |
| Water-based fiber-tip pen | 1 | KF700-BK (black) |

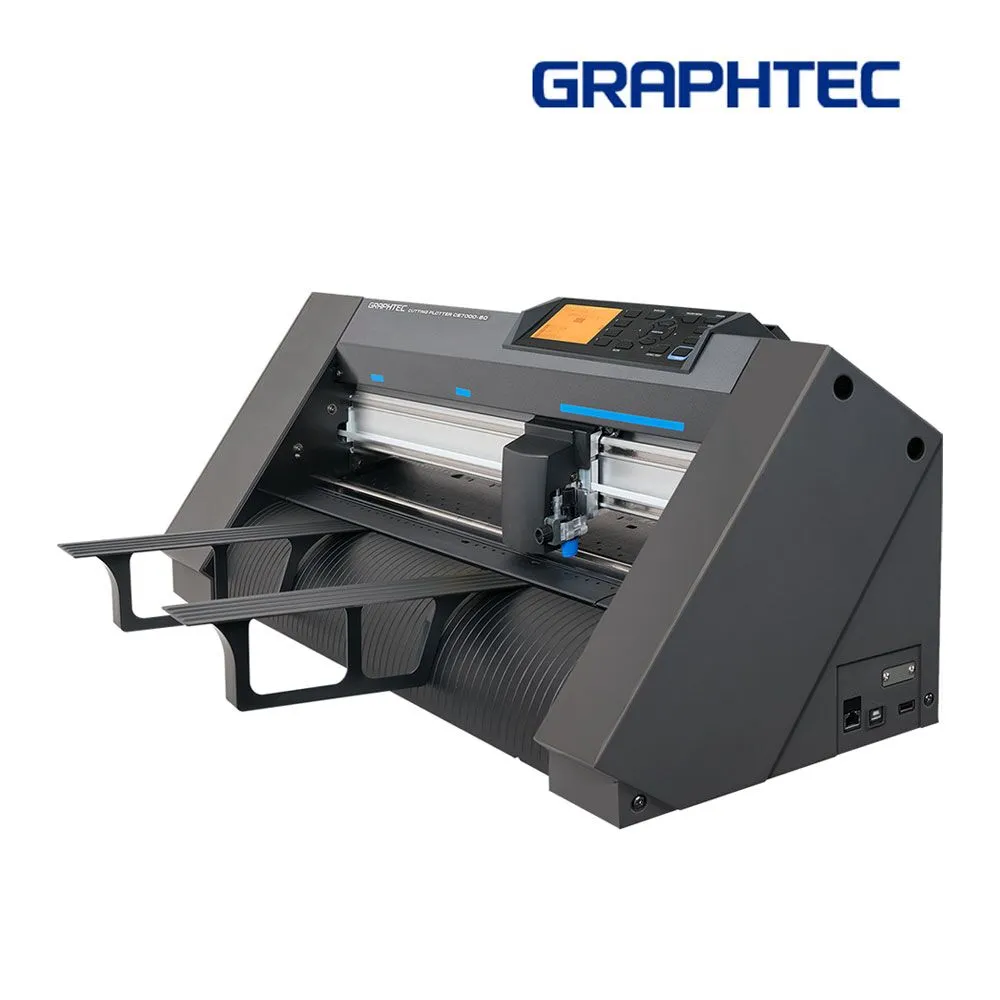

| Roll Media Tray | 1 | CE7000-40 |
| DVD-ROM | 1 | User manual, Windows driver, Graphtec Pro Studio (Windows, 1 license), Graphtec Studio (Mac), Cutting Master4 |
| Printed Documents | 1 | Setup Manual, Cutting Blade Manual, and Safety Manual |
OPTIONAL ACCESSORIES
| ITEM | Part No. | DESCRIPTION |
|---|---|---|
| Carrer Sheet Table | OPH-A45 | CE7000-40 |
