FCX4000 series achieves high quality cutting with improving of the quality and accuracy by enhancing rigidity of the sliding mechanism and the driving system.
It is the best flatbed type cutting plotter that has a high usability and productivity equipped with new functions.
Holds media by electrostatic that is generated by electrodes arranged inside the panel. This method is suitable for cutting light weight materials.
The FCX4000 series has 2 tool holder in the carriage. Using 2 different tools in the same job increases work efficiency.

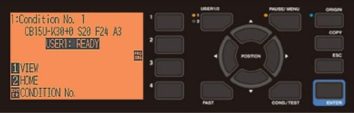

Settings can be easily set using the large 3.7-inch LCD (240 x 128 dots).

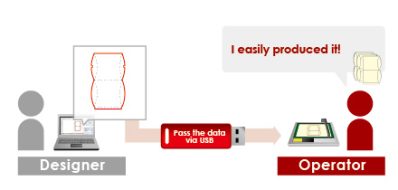

Cut and Plot data is created from the design by using Cutting Master 4 or Graphtec Pro Studio, then the data is saved to USB flash memory. The plot data file can be selected from the USB by menu operation on the plotter, then cutting is performed. This simplified work-flow enables users to operate without a computer.

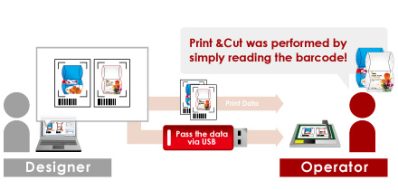

In Print & Cut operation, the cutting data is automatically selected from USB flash memory by scanning the barcode printed on the media then performs contour cutting. This prevents the usage of incorrect data, and improves work efficiency.

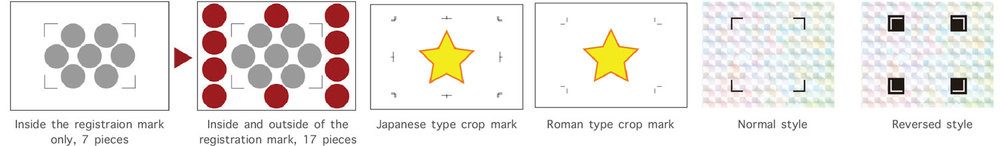

This included function expands the print and cut area to include objects outside of the registration marks! Production efficiency is enhanced and media waste is reduced.
Contour cutting pre-printed media is also possible using “standard crop marks.” This operation is available with the included Cutting Master 4 plug-in workflow.
Registraiton marks are detectable when there is sufficient contrast against the mark and its background. Ultra glossy and reflective media offer challenges for accurate registration mark detection. With this reversed color output, the sufficient contrast is brought back for the ability to contour cut pre-printed ultra glossy and reflecting sheeting.
Item | FCX4000-50ES | FCX4000-60ES | |
---|---|---|---|
Configuration | Digital servo system, Flatbed | ||
Media hold-down method | Electrostatic panel | ||
Effective cutting area | 660 mm × 488 mm | 976 mm × 660 mm | |
Mountable media (Y-axis direction) |
536 mm | 708 mm | |
Maximum cutting speed | 750 mm/s (1 to 75 cm/s in 23 steps) | ||
Cutting pressure | Tool 1: Max. 5.88 N (600 gf) Tool 2: Max. 5.88 N (600 gf) |
||
Cutting force settings | Tool 1: in 48 steps, Tool 2: in 48 steps | ||
Minimum character size | Approx. 10 mm square (varies with character font and media) | ||
Mechanical resolution | 0.005 mm (5µm) | ||
Programmable resolution | GP-GL mode: 0.1/0.05/0.025/0.01 mm, HP-GL™ (*1) : 0.025 mm |
||
Distance accuracy | Max.0.2% of the distance moved or 0.1mm, whichever is larger (excluding contraction of media, in plotting/cutting mode) (*2) |
||
Perpendicularity | Max 0.3 mm / 430 mm (excluding contraction of media, in plotting/cutting mode) |
Max 0.4 mm / 610 mm (excluding contraction of media, in plotting/cutting mode) |
|
Repeatability | Max 0.1mm (excluding contraction of media, in plotting/cutting mode) (*2) | ||
Standard interfaces | USB2.0 (Full Speed) / RS-232C / Ethernet (10BASE-T/100BASE-TX) | ||
Buffer memory | 2MB | ||
Command sets | GP-GL / HP-GL™ / AUTO (Automatic switching in GP-GL and HP-GL™) | ||
Number of tools | 2 tools | ||
Cutter blade, pen, and tool types | Cutter blade: supersteel Pen: water-based fiber-tip pen Creasing/scoring tool |
||
Operating panel | 3.7-inch graphical LCD (same LCD as the FCX2000) | ||
New features | Dual configuration, Creasing in the curve, Perforation cutting (performed by the force control), Data management using the bar-code, Offline cutting operation using the USB memory, Display the degree of wear for the cutting blade, Confirming the cutting object size, Draft mode (higher throughput in arc) | ||
Power supply | 100 to 240 V AC, 50/60 Hz (Auto switching) | ||
Power consumption | Max. 120 VA | ||
Operating environment | Temperature: 10 to 35 degree C , Humidity: 35 to 75% RH (non-condensing) |
||
Guaranteed accuracy environment | Temperature: 16 to 32 degree C, Humidity: 35% to 70% RH (non-condensing) |
||
External dimensions (*3) (W x D x H) |
1089 x 897 x 204 mm | 1405 x 1069 x 204 mm (including stand : 1405 x 1097 x 896 mm) |
|
Weight | approx. 29kg | approx. 38 kg (including stand : 55 kg) |
|
Compatible OS (*4)(*5) | Windows 10 (Home / Pro / Enterprise / Education) Windows 8.1 (Windows 8.1 / Pro / Enterprise) Windows 8 (Windows 8 / Pro / Enterprise) Windows 7 (Ultimate / Enterprise / Professional / Home Premium) |
||
Mac OS X 10.7 to 10.11 / macOS 10.12 (Sierra) to 10.14 (Mojave) | |||
Supported software | Cutting Master 4 (*6), Graphtec Pro Studio (*6), Graphtec Studio for Mac, Windows Driver | ||
Compatible Standards |
Safety | UL/cUL, CE mark | |
EMC | VCCI Class A, FCC Class A, CE mark (EN55032, others) |
Type of media | Thickness | Support cutting blade | FCX4000-50/60ES | FCX2000-60VC | FCX2000-120VC | FCX2000-180VC | FCX2000-120ES | |
---|---|---|---|---|---|---|---|---|
Self-adhesive marking film (vinyl, fluorescent, reflective) |
up to 0.25 mm | CB09UB-5 | 〇 | 〇 | 〇 | 〇 | 〇 | |
Heavy paper/board (pattern paper, oil board) |
up to 0.5 mm | CB15U-5, CB15U-K30-5 |
〇 | 〇 | 〇 | 〇 | 〇 | |
up to 1.0 mm | CB30UC-1 | – | 〇 | 〇 | 〇 | 〇 | ||
Compressed foam sheet | up to 0.8 mm | CB15U-K30-5 | 〇 | 〇 | 〇 | 〇 | – | |
Sandblast resist rubber | up to 1.0 mm | 〇 | 〇 | 〇 | 〇 | 〇 | ||
Cardboard | E flute | up to 1.5 mm | CB30UC-1 (*7) | – | 〇 | 〇 | 〇 | 〇 |
F / G flute | up to 1.2 mm | CB30UC-1 | – | 〇 | 〇 | 〇 | 〇 | |
CB15U-K30-5 | 〇 | 〇 | 〇 | 〇 | 〇 | |||
Rubber sheet | up to 1~2 mm | PM-CB-001 (*7) | – | 〇 | 〇 | 〇 | – | |
Clear sheet for plastic boxes | up to 0.5 mm | CB15U-5 | 〇 | 〇 | 〇 | 〇 | 〇 | |
up to 1.0 mm | CB15U-K30-5 | 〇 | 〇 | 〇 | 〇 | 〇 | ||
High-intensity reflective film | up to 0.5 mm | CB15UA-5 | 〇 | 〇 | 〇 | 〇 | – | |
up to 1.0 mm | CB15UA-K30-5 | 〇 | 〇 | 〇 | 〇 | – |
Item | Q’ty | Description |
---|---|---|
Power cord | 1 pc. | The type of cord is different by destination |
Cutting blade holder | 1 pc. | PHP33-CB15N-HS |
Cutting blade | 1 pc. | CB15U-1 (1 pc/pack) |
Loupe | 1 pc. | PM-CT-001 (for checking the extruded length of blade) |
Pen holder | 1 pc. | PHP31-FIBER |
Water-based fiber-tip pen | 1 pc. | KF700-BK (Black) |
Protect sheet | 1 pc. | PM-CR-002 for FCX4000-50ES / PM-CR-003 for FCX4000-60ES |
USB cable | 1 pc. | Length 2.9 m |
DVD-ROM | 1 set | ・User’s manual (PDF) ・Windows driver (OPS662) ・Cutting Master 4 (plug-in software for Illustrator/CorelDRAW in Windows, Illustrator in Mac) ・Graphtec Pro Studio (design software for Windows) ・Graphtec STUDIO (Design software for Mac) |
Printed documents | 1 set | Quick guide, Usage Precautions,Cutter Blade Manual |
Item | Part No. | Description |
---|---|---|
Graphtec Pro Studio Plus | OPS682-PLS | Design software including all advanced functions. (1 license) |
Graphtec Pro Studio Plus for Rhinestone | OPS682-RSF | Limited edition of rhinestone function only. (1 license) |
Graphtec Pro Studio Plus for Auto Nesting | OPS682-ANF | Limited edition of auto nesting function only. (1 license) |
Stand | ST0113 | Stand for FCX4000-60ES |

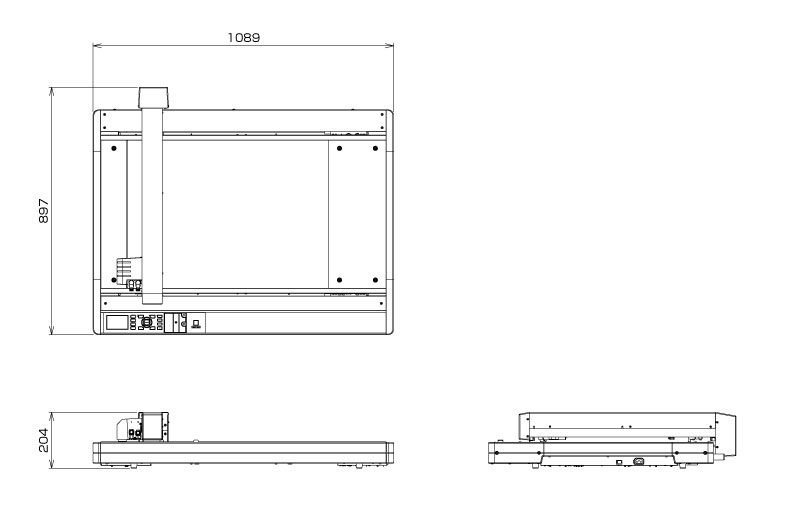

Scale : mm
Tolerance : +/- 5 mm

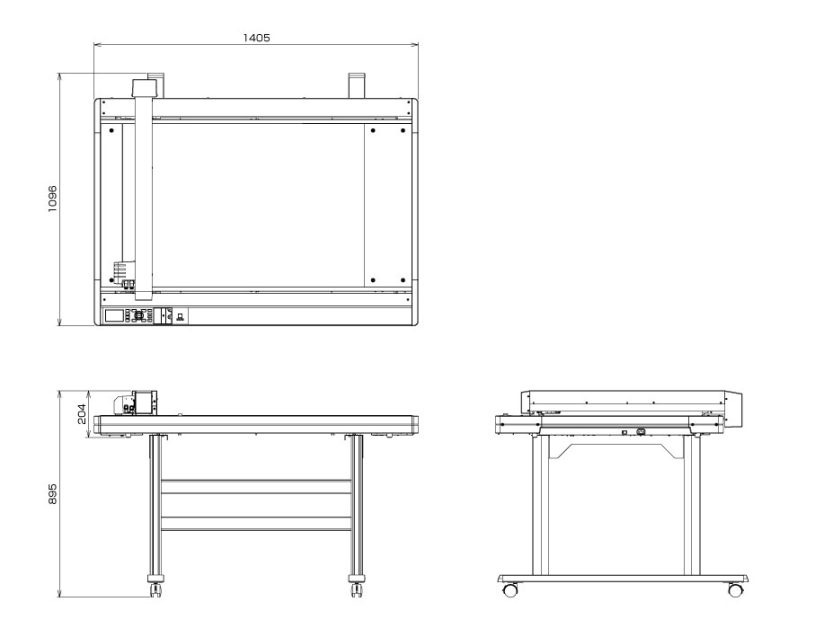

Scale : mm
Tolerance : +/- 5 mm
Scale : mm
Tolerance : +/- 5 mm
Item | Model Name | Image | Description | |
---|---|---|---|---|
Cutting blade holder | PHP33-CB09N-HS | ![]() |
For CB09U series blade | |
PHP33-CB15N-HS | ![]() |
For CB15U series blade | ||
PHP35-CB09-HS | ![]() |
For CB09U series blade | ||
PHP35-CB15-HS | ![]() |
For CB15U series blade | ||
Cutting blade | CB09UB-5 | ![]() |
0.9mm dia. 45º, Supersteel | Self-adhesive marking film (vinyl, fluorescent, refractive), thin sheet, up to 0.25 mm thick. |
CB15U-5 | ![]() |
1.5mm dia. 45º, Supersteel | Rigid or thick film or sheet, heavy paper (pattern paper, oil board), 0.25 mm to 0.5 mm thick. | |
CB15U-K30-5 | ![]() |
1.5mm dia. 30º, Supersteel | Rigid or thick sheet, 0.25 mm to 0.5 mm thick. Sandblast resist rubber, up to 1.0 mm thick. And also small detailed characters on marking film (up to 0.25 mm thick). | |
CB15UA-5 | ![]() |
1.5mm dia. 45º, Supersteel | High-intensity reflective film or harder film, up to 0.5 mm thick. | |
CB15UA-K30-5 | ![]() |
1.5mm dia. 30º, Supersteel | High-intensity reflective film or harder film, up to 1.0 mm thick. | |
Loupe | PM-CT-001 | ![]() |
Checking blade length, for PHP33 and PHP35 series | |
Creasing / Scoring tool | CP-001 | ![]() |
Stick type, for heavy paper | |
PM-CT-002 | ![]() |
Ball on tip of stick, for curve on heavy paper | ||
Fiber-tip pen, pen holder | KF700-BK | ![]() |
Water-based fiber-tip pen, Black | |
KF700-RD | Water-based fiber-tip pen, Red | |||
PHP31-FIBER | ![]() |
Pen holder for KF700 series pen | ||
Adhesive sheet, Cling mat | CM-0003-R1A | Adhesive sheet, supplying in roll, size 545 mm x 20 m | ||
CM-0004 | Cling mat for film based materials, size 435 x 610 mm | |||
CM-0005 | Cling mat for paper based materials, size 435 x 610 mm | |||
PM-CM-001 | Cling mat for film based type material, size 660 mm x 488 mm | |||
PM-CM-002 | Cling mat for paper based type material, size 660 mm x 488 mm | |||
Protect Sheet | PM-CR-002 | For protecting the writing panel of FCX4000-50ES, Transparent vinyl, thickness 0.3 mm | ||
PM-CR-003 | For protecting the writing panel of FCX4000-60ES, Transparent vinyl, thickness 0.3 mm |
