FCX2000 Series
Low-cost, Die-free cutting and Processing
The FCX2000 is the ultimate solution for prototyping and small production runs of rigid materials without the use of a cutting die. Reduce media waste/ processing time with Graphtec’s precision cutting and dedicated software. Added offline(USB) operation enables users of all skill levels to easily process materials.
Sandblasting
Traffic Signage
Garment / Shoe Pattern
Sandblasting
Packaging
Industrial Goods
Sticker

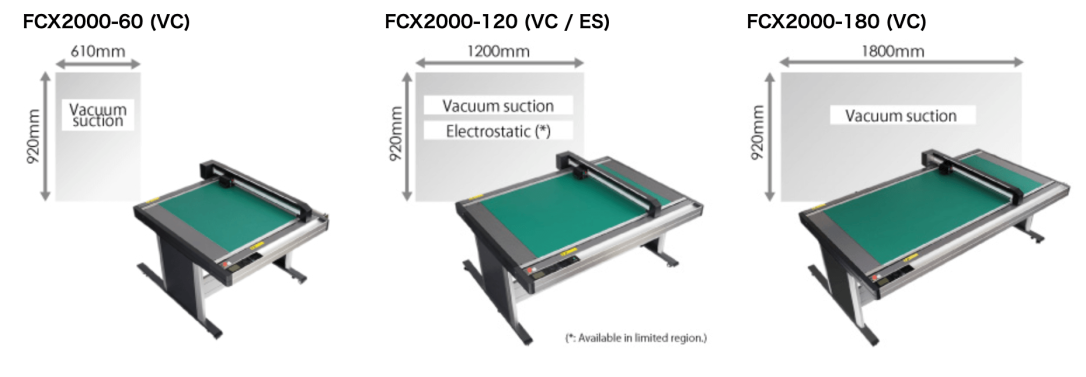

Table size in the Line-up
3 different table size with choice of vacuum suction or electrostatic media-hold down methods depending on application.

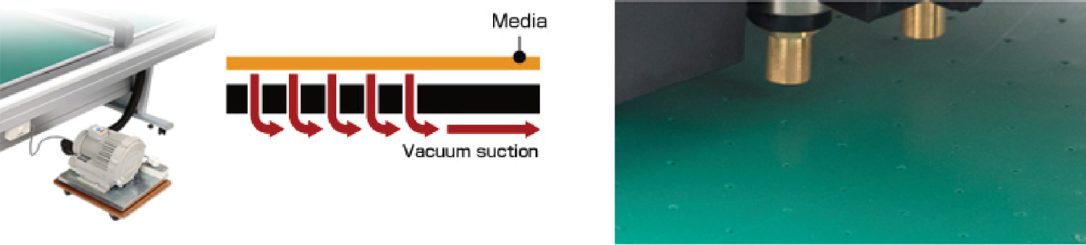

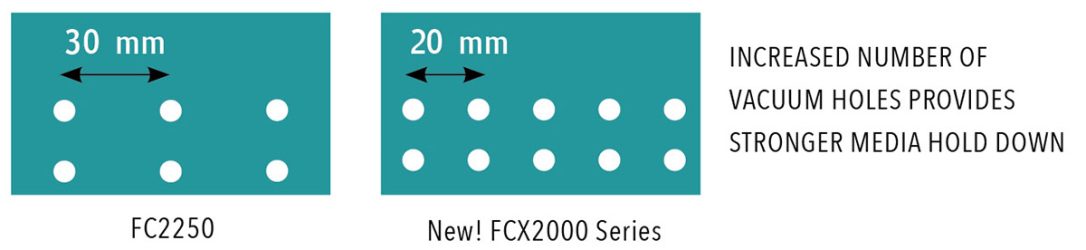

Stronger Media Hold-Down
Distance between the holes has been improved from 30 mm on FC2250 Series to 20 mm on FCX2000 Series, as a result, FCX2000 Series provides stronger suction power to hold heavier and thicker medias down.

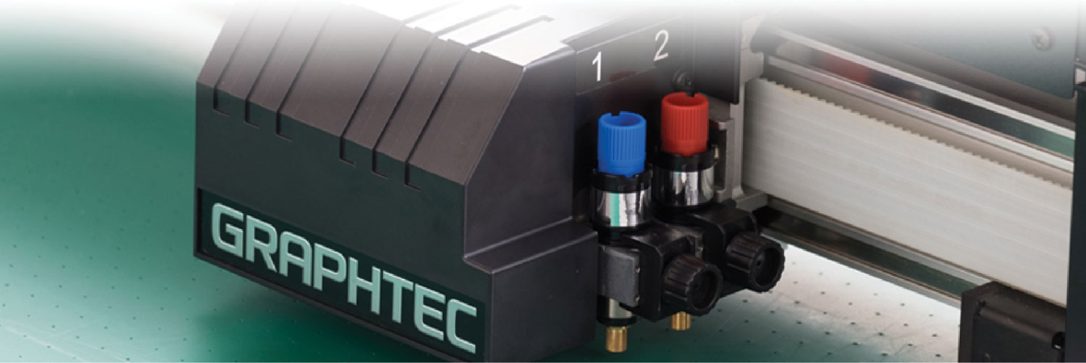

Dual tool holder with 500 gf on tool 1 and 1,000 gf on tool 2
Provided tools suitable for many applications
Tool Holders & Cutting/Creasing Tools
Dual Tool Holders which can hold a cutting blade and creasing tool — to produce creases/folds and cuts on the same run.

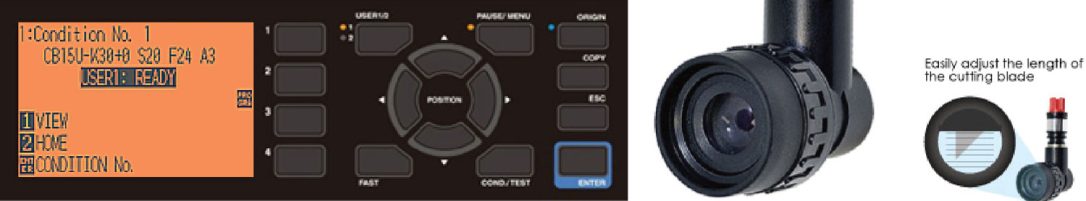

Intuitive operation with 3.7″ LCD
Onboard control and settings are simplified using the equipped 3.7” LCD (240×128 dots) and tactile control panel.

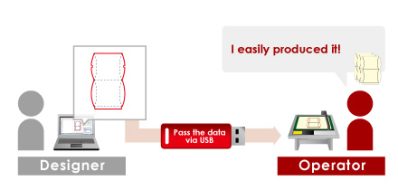

Offline operation supported by use of USB flash memory
Cut and plot data is created with Cutting Master 4 or Graphtec Pro Studio. That saved data may be transferred to a USB flash memory and the cut plot data file can be selected from the USB on the FCX2000 using its menu operations. This simplified workflow enables users to operate without being connected to the computer.
Data management using barcode function with USB flash memory
In Print & Cut (referred to as “P&C”) operation, the cutting data is automatically selected from USB flash memory by scanning the barcode printed on the media then performs contour cutting. This prevents the usage of incorrect data, and improves work efficiency.
Expanded Contour Cutting Area
This included function expands the print and cut area to include objects outside of the registration marks! Production efficiency is enhanced and media waste is reduced.
Supports Standard Crop Marks
Contour cutting pre-printed media is also possible using “standard crop marks.” This operation is available with the included Cutting Master 4 plug-in workflow.
Reversed Color Registration Marks
Registraiton marks are detectable when there is sufficient contrast against the mark and its background. Ultra glossy and reflective media offer challenges for accurate registration mark detection. With this reversed color output, the sufficient contrast is brought back for the ability to contour cut pre-printed ultra glossy and reflecting sheeting.
Media type
Options

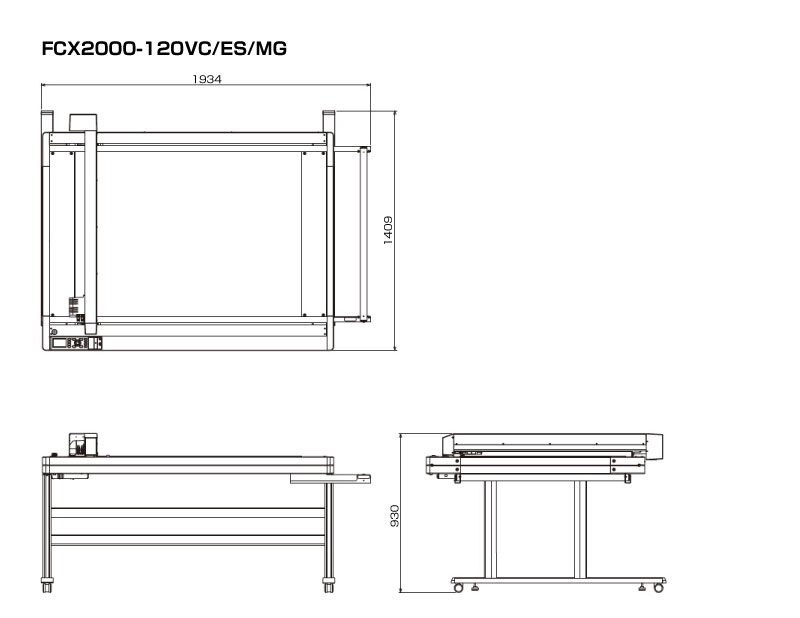

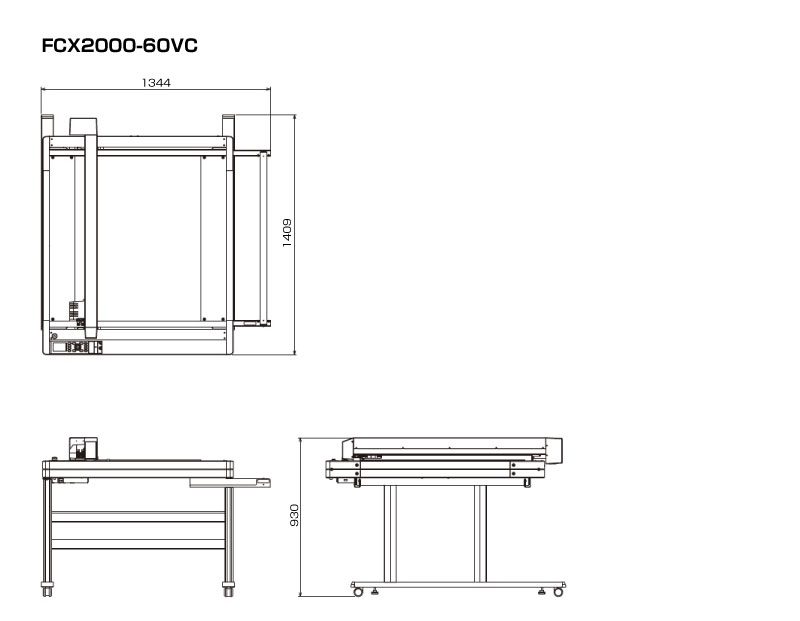

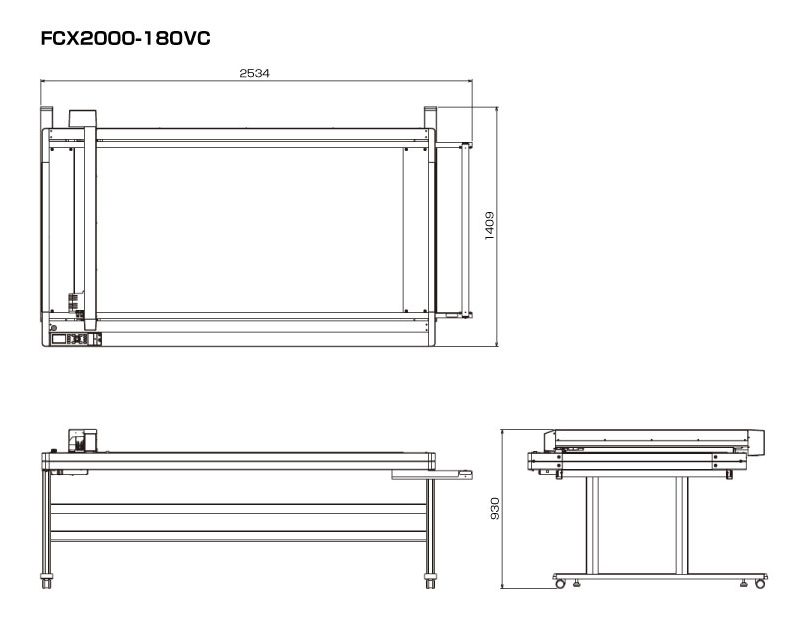

Scale : mm
Tolerance : +/- 5 mm
Scale : mm
Tolerance : +/- 5 mm
Scale : mm
Tolerance : +/- 5 mm
| Item | Model Name | Image | Description | |
|---|---|---|---|---|
| Cutting blade holder | PHP33-CB09N-HS |  |
For CB09U series blade | |
| PHP33-CB15N-HS |  |
For CB15U series blade | ||
| PHP35-CB09-HS |  |
For CB09U series blade | ||
| PHP35-CB15-HS |  |
For CB15U series blade | ||
| Cutting blade | CB09UB-5 |  |
0.9mm dia. 45º, Supersteel | Self-adhesive marking film (vinyl, fluorescent, refractive), thin sheet, up to 0.25 mm thick. |
| CB15U-5 |  |
1.5mm dia. 45º, Supersteel | Rigid or thick film or sheet, heavy paper (pattern paper, oil board), 0.25 mm to 0.5 mm thick. | |
| CB15U-K30-5 |  |
1.5mm dia. 30º, Supersteel | Rigid or thick sheet, 0.25 mm to 0.5 mm thick. Sandblast resist rubber, up to 1.0 mm thick. And also small detailed characters on marking film (up to 0.25 mm thick). | |
| CB15UA-5 | |
1.5mm dia. 45º, Supersteel | High-intensity reflective film or harder film, up to 0.5 mm thick. | |
| CB15UA-K30-5 |  |
1.5mm dia. 30º, Supersteel | High-intensity reflective film or harder film, up to 1.0 mm thick. | |
| Loupe | PM-CT-001 |  |
Checking blade length, for PHP33 and PHP35 series | |
| Creasing / Scoring tool | CP-001 |  |
Stick type, for heavy paper | |
| PM-CT-002 |  |
Ball on tip of stick, for curve on heavy paper | ||
| Fiber-tip pen, pen holder | KF700-BK |  |
Water-based fiber-tip pen, Black | |
| KF700-RD | Water-based fiber-tip pen, Red | |||
| PHP31-FIBER |  |
Pen holder for KF700 series pen | ||
| Adhesive sheet, Cling mat | CM-0003-R1A | Adhesive sheet, supplying in roll, size 545 mm x 20 m | ||
| CM-0004 | Cling mat for film based materials, size 435 x 610 mm | |||
| CM-0005 | Cling mat for paper based materials, size 435 x 610 mm | |||
| PM-CM-001 | Cling mat for film based type material, size 660 mm x 488 mm | |||
| PM-CM-002 | Cling mat for paper based type material, size 660 mm x 488 mm | |||
| Protect Sheet | PM-CR-002 | For protecting the writing panel of FCX4000-50ES, Transparent vinyl, thickness 0.3 mm | ||
| PM-CR-003 | For protecting the writing panel of FCX4000-60ES, Transparent vinyl, thickness 0.3 mm | |||
