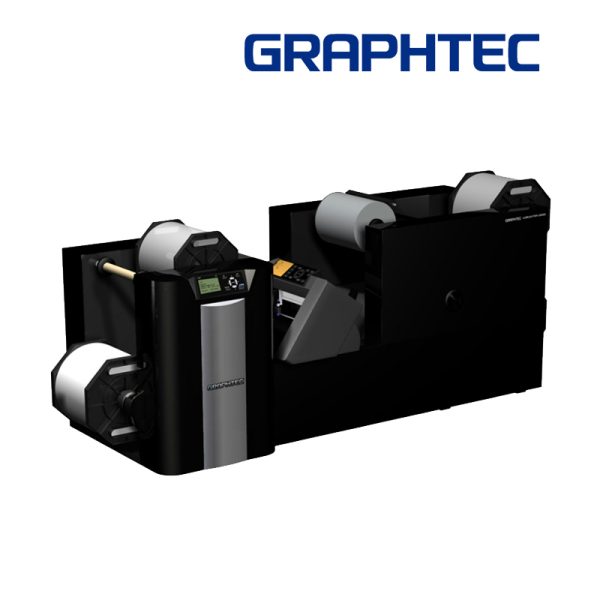

Label Maker DLC 1000
Main Features:
Finish your label printed with any printer!
Process Max. 200m roll continuously with Roll-to-roll system.
Create registration marks and operate the machine from Illustrator / CorelDRAW with standard plug-in software Cutting Master for DLC.
Cutting plotter installed – cutting dies unneeded.
Laminate and Slit your work.
Cross cut your work to sheet.
Max. media width: 216mm
- DESCRIPTION
- SPECIFICATIONS

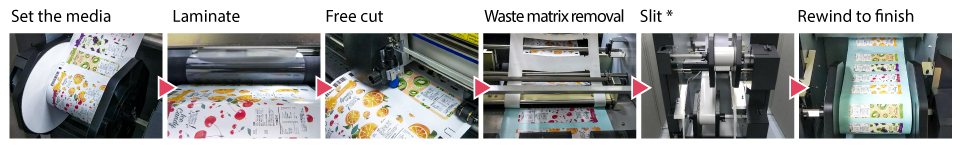

Label making workflow

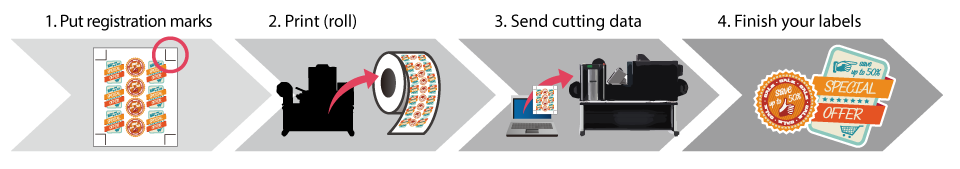

Cutting Master for DLC
Easily create DLC1000 original registration marks
Send cutting data to DLC1000
Supports Illustrator / CorelDRAW
Supports 10 languages
Dimensions
| Item | Description | |
|---|---|---|
| Feeding unit | Loadable media width | Maximum: 216 mm, Minimum: 100 mm |
| Page size | 1 page size: Maximum: 300 mm, Minimum: 76.2 mm * Maximum 1200 mm when using Sequential Mode |
|
| Loadable media diameter | Maximum: 254 mm (under 10 inch) Inner diameter: 76 mm (3 inch core) |
|
| Loadable media weight | Max. 10 kg | |
| Laminating section | Loadable media width | Maximum: 195 mm, Minimum: 80 mm |
| Loadable media size | Maximum length: 200 mm OR outside diameter under 210 mm Inner diameter: 76 mm (3 inch core) |
|
| Windable media diameter | Maximum outside diameter: 200 mm Inner diameter: 25.4 mm (1 inch core), Core length: 227 mm |
|
| Loadable media weight | Max. 8 kg | |
| Cutting section | Cutout system | Half cutting by cutting plotter (super steel) |
| Drive system | Digital servo | |
| Cutting force | 0.2 – 2.9 N (20 – 300 gf) : 31 steps | |
| Maximum cutting area | WITH R. MARK : 186 mm x 1200 mm NO R. MARK : 203 mm x 300 mm (Slitter cannot be used.) |
|
| Maximum cutting speed | 600 mm/s | |
| Separating section | Windable media diameter (*1) | Maximum: 220 mm Inner diameter: 25.4 mm (1 inch core), Core length: 227 mm |
| Slitting section | Slitter | 3 |
| Cross cutting section | Cut | Cross cut |
| Winding section 1 | Windable media width | Maximum: 216 mm, Minimum: 55 mm |
| Windable media diameter (*1) | Maximum: 254 mm Inner diameter: 76 mm (3 inch core) |
|
| Windable media weight | Max. 14 kg (*1) | |
| Winding section 2 | Windable media width | Maximum: 108 mm, Minimum: 55 mm |
| Windable media diameter (*1) | Maximum: 220 mm Inner diameter: 76 mm (3 inch core) |
|
| Windable media weight | Max. 7 kg (*1) | |
| Main Unit Specifications | Interface | USB2.0 (High Speed), Network (Ethernet 10BASE-T / 100BASE-TX) |
| LCD display | Graphic Type (128 dots x 64 dots) | |
| Power source | AC100-120V, AC200-240V, 50/60Hz (Automatic changeover) | |
| Power consumption | Max. 170VA | |
| Operating environment | 10 – 35℃, 35 – 75% R.H. (non-condensing) | |
| Guaranteed accuracy environment | 16 – 32℃, 35 – 70% R.H. (non-condensing) | |
| External dimensions (approx.) | 1904 (W) × 994 (H) × 1297 (D) mm | |
| Weight (approx.) | 151kg | |
