Digifoil 330U

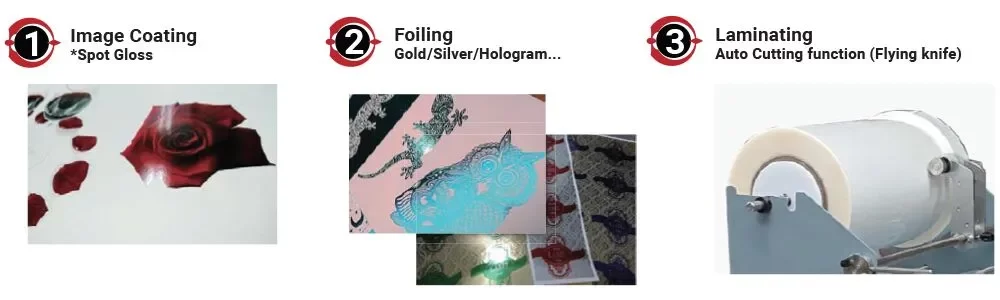

One single unit performs 3 different jobs!! Image Coating / Color Foiling Make it possible to Laminate

3 types process are possible by one machine

Air suction feeding, so less damage for image

Laminating film can be cut by automatically

Underfilm is not required for lamination

Contact Us
Download Brochure

Touch Panel

All buttons are by pictogram, so easy to understand. Just push the film type on the panel, then control the suitable temperature for the film by automatically.

Air volume adjustment

Air volume is possible to be adjust on Touch Panel.

Air volume adjustment

Smoothly feeding is possible by air suction feeding.

The paper is fed from the top. Possible to adjust the strength of paper separation by separation rubbers.

Less damage mechanism for the papers.

Compared with the previous model, DC-XII, the paper feeding has become more stable.

Improved performance

Further improvement of foil processing quality compared to the previous model, Digifoil 33.

Laminating Film Cut

Laminating film is cut completely by Flying Knife.

Film width is possible to be cut depending on the paper size by Edge Cutter.

Multiple process by one machine!!

SPECIFICATIONS:

Coating type Color Foil/Image cast/Laminate
Paper Size Min : 210 x 148 mm
Max: 330 x 660 mm
Paper thickness 110〜400 gsm /t=0.12~0.46mm conditional
Speed 〜3.2 m/min (adjustable)
Feeding Air suction belt with auto elevator system
Temp.adjust 90-160° C
Power AC 100V 50/60 Hz. 700W
Dimension 1100 x 580 x 450mm *as miminum setting
