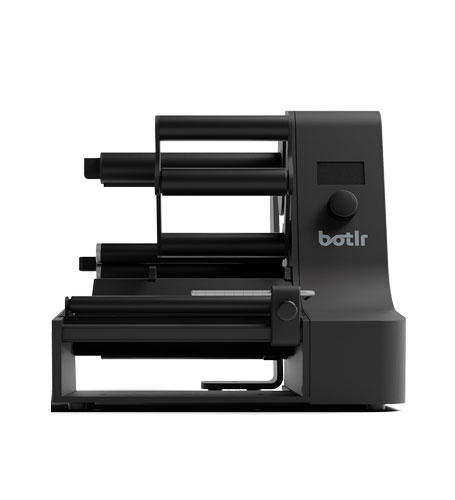

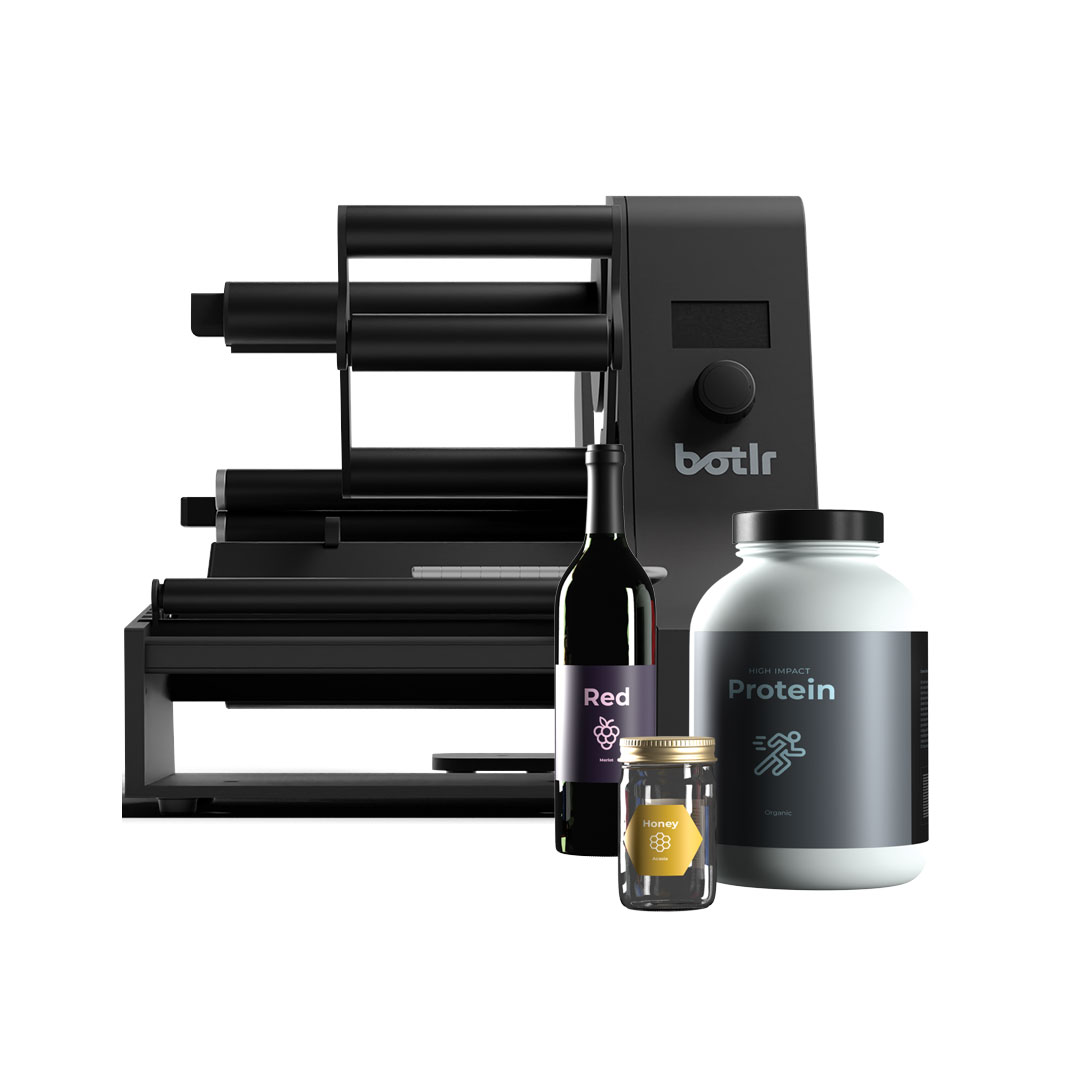

Botlr

The most innovative Automatic Label Applicator on the market. Botlr believes that no-one should spend hours adjusting settings and measurements. When you take Botlr out of the box, he will be immediately ready to use. That’s our no-nonsense philosophy.

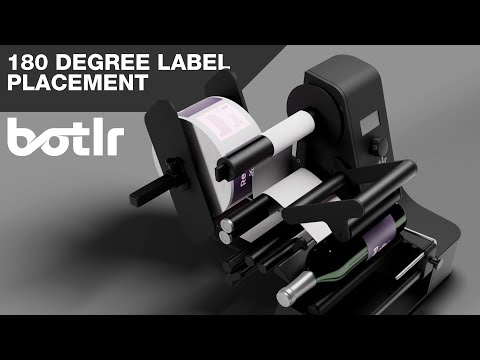

Botlr ensures perfect label positioning, from the first label up until the last. Its capacity to automatically calculate the position of the second label precisely 180° opposite of the first one, makes him one of a kind.

Its Wide OLED-Screen displays instructions for perfect label application, and the integrated sensors provide live response when required.

Contact Us

Download Brochure

Botlr-Different-shapes-and-sizes-labelgraff

A keen eye and attention to detail.

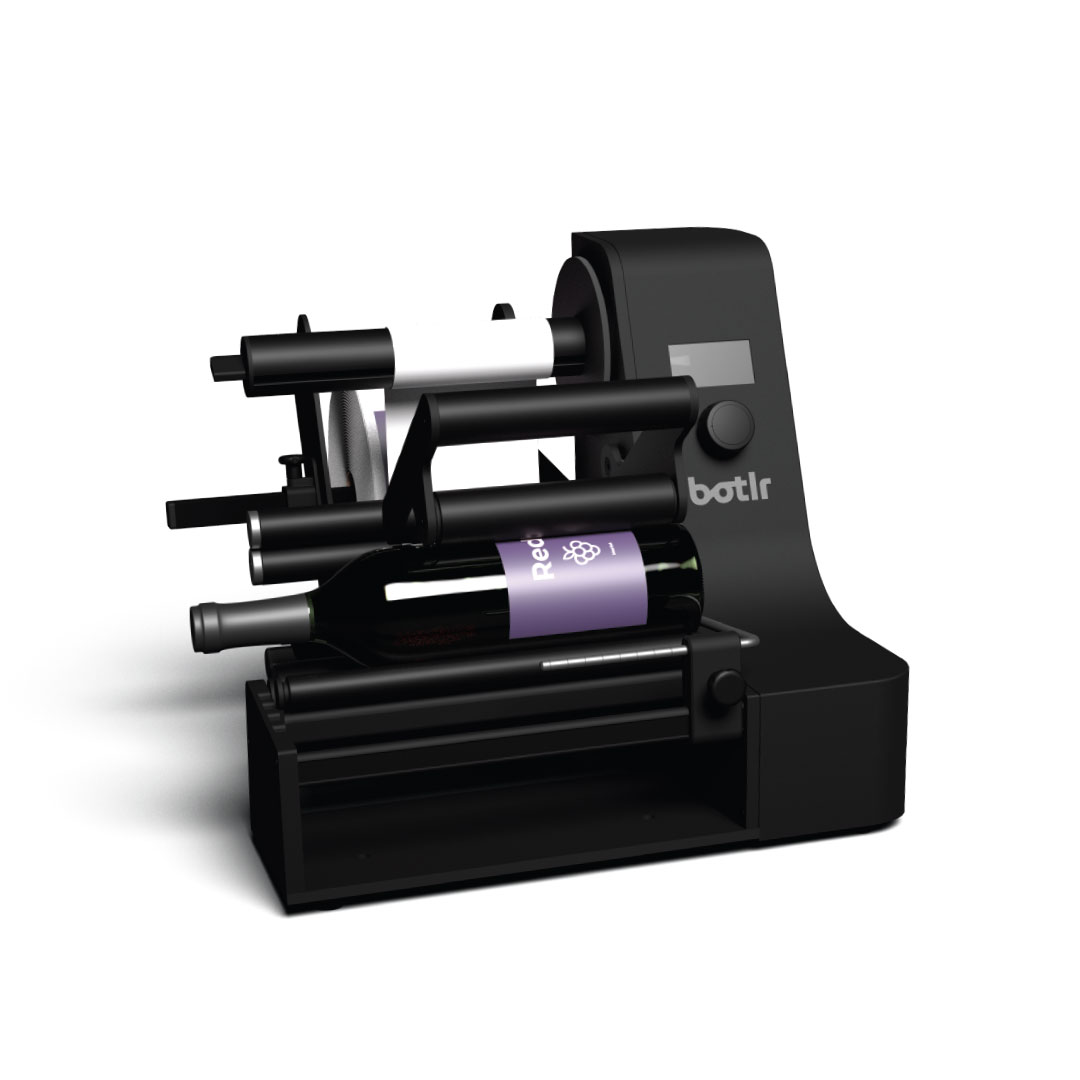

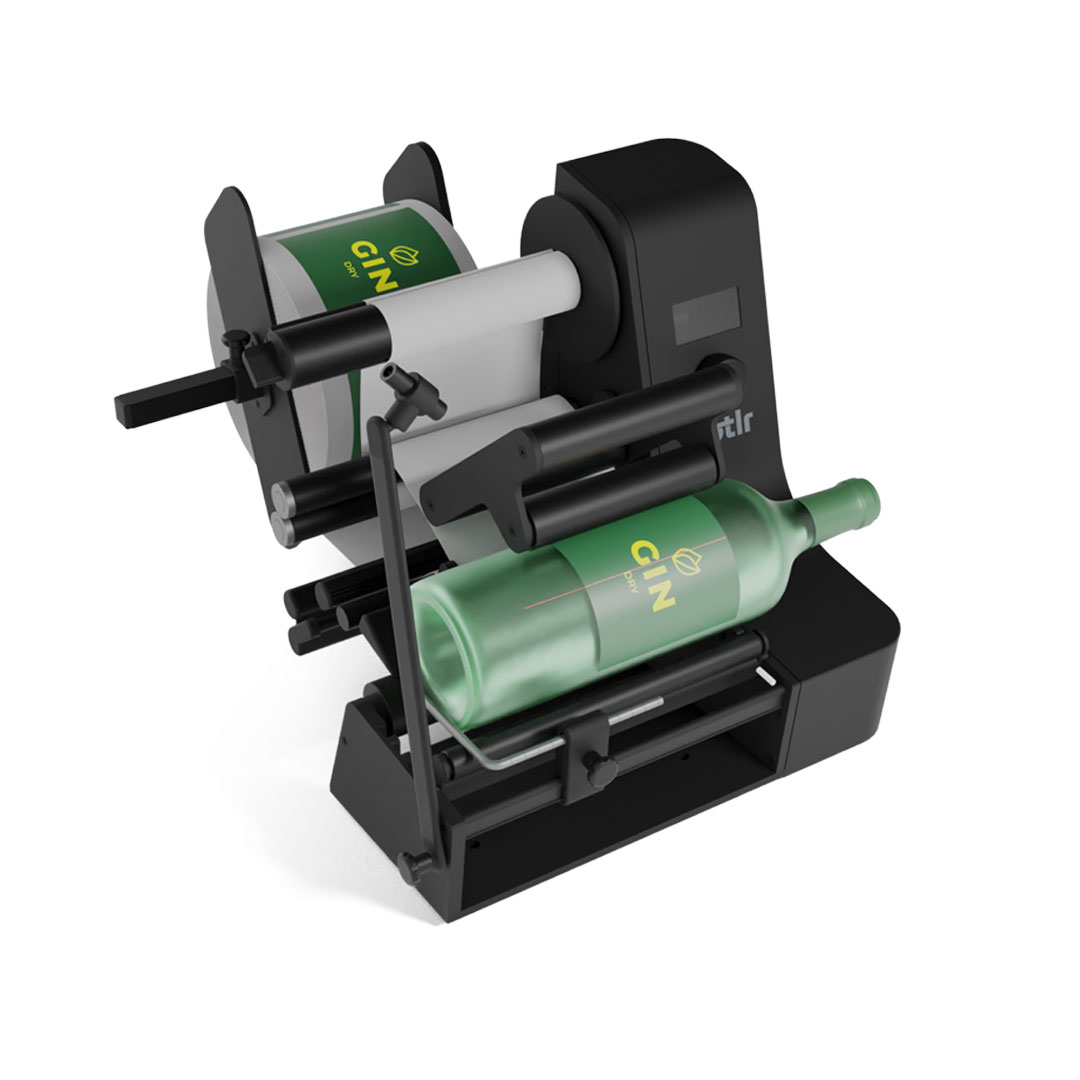

Botlr’s patented technology measures the bottle diameter and calculates automatically where to place the first and (optional) second label 180° opposite… or somewhere else. Stop wasting time applying labels manually. It’s time to evolve. It’s time to let Botlr work for you.

Benefits

Patented Technology

It’s patented technology calculates every bottle diameter automatically and applies your labels precisely 180° opposite to each other or on any desired place.

Flexible

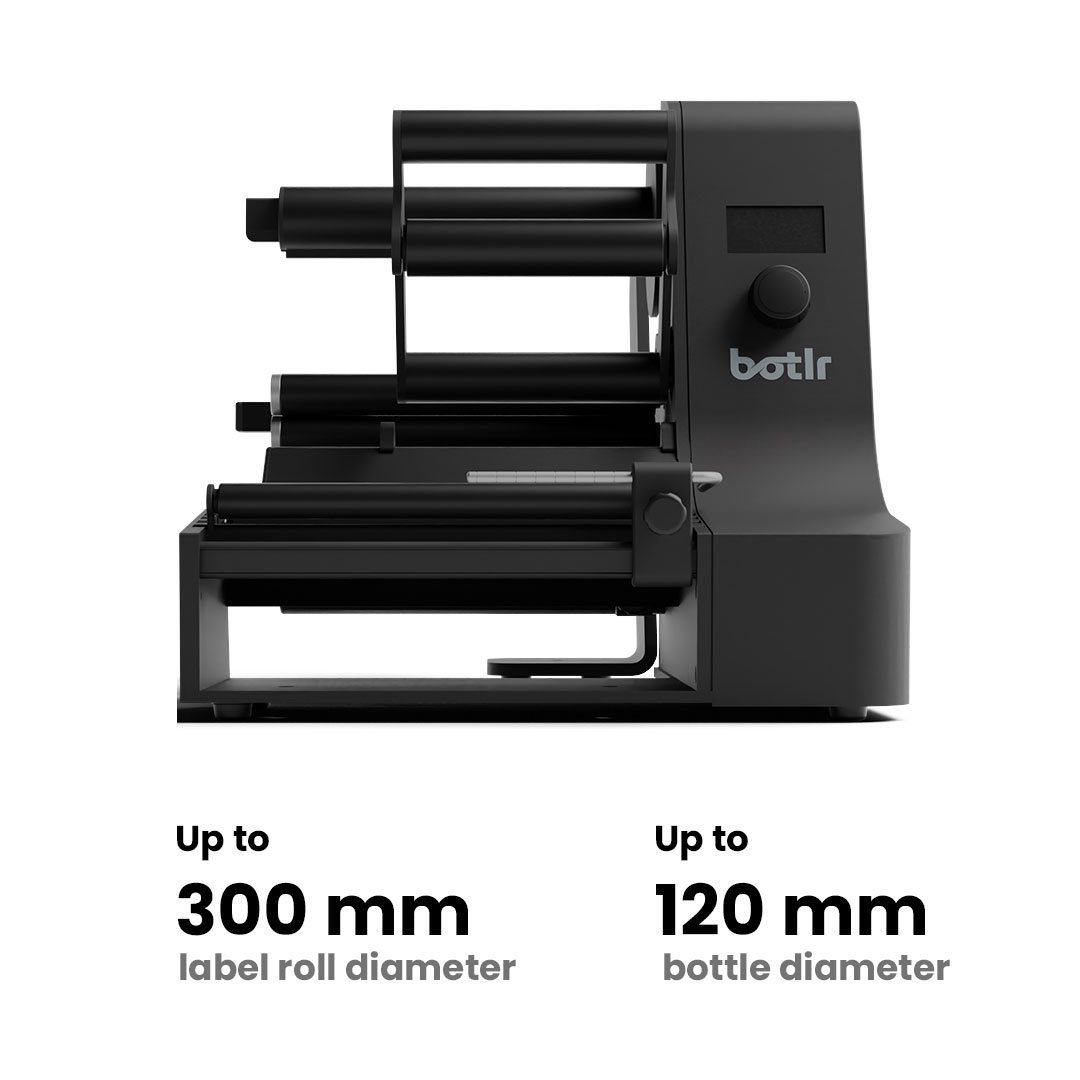

Botlr can handle any bottle or container ranging from 13mm, up to 120mm in diameter, without any length restrictions.

Cost reduction

Only Botlr labels +8,000 bottles a day. That’s up to 1,400 bottles an hour.

Transparent labels

Botlr even allows you to apply transparent labels effortlessly, without imperfections.

Any size, any shape, any material

Botlr handles one or two labels, transparent labels, a second label with different dimensions on the same label roll, two labels with a different gap-size and labels in special shapes and thicknesses. That is unparalleled.

Other than that, Botlr supports label rolls up to 300mm in diameter and 6kg in weight. He also makes sure to collect the backing material, making your work so much more efficient.

1 or 2 labels

Transparent labels

2nd label with different dimensions on the same label roll

Two labels with a different gap-size

Labels with unique shapes and thickness

Max. label roll width 240 mm

Max. label roll diameter 300 mm

Max. label roll weight 6 KG

Compatibilities

Laser tool

Multiple label colour printer

Size & weight

Width: 376 mm

Height: 364 mm

Depth: 533 mm

Weight: 14 kg

Power supply

Input 100-240V- 1.5A

Output 24V-DC-2.7A

Related Products

Print Your Own Labels and Save Time & Money!

LX500ec Features:

Built-in label cutter

Small, compact size

Prints up to 10.8 cm (4.25″) wide

4800 dpi full-colour printing

Download Brochure

What’s in the box

LX500ec Colour Label Printers include one dye-based color ink cartridge, NiceLabel Free (DTM Edition)/BarTender UltraLite design software, printer drivers for Windows® and Mac®, starter roll of 4” x 3” High-Gloss Inkjet Label Stock, USB 2.0 cable and instructions. Requires an available USB 2.0 port.

Your labels can include full-colour photos, illustrations, graphics, text and bar codes. Print them when and where you need them – in quantities you can really use! Best of all, depending upon the quantity you print, the price per label will be significantly less than labels printed on flexo or offset.

Get Up and Running Quickly

From initial set-up to full operation, the LX500ec is easy to use. Plus, everything you need to start printing labels is included in the box. Each LX500ec ships with NiceLabel Free (DTM Edition)/BarTender® UltraLite software, sample roll of high-gloss labels, ink cartridge and USB cable. You’ll be printing full-colour labels within minutes of taking the printer out of the box.

LX500ec model, featuring a built-in guillotine cutter

The built-in cutter allows you to cut die-cut, reflective and continuous label stock and offers several cut options. You can choose between the cut modes:

Do not cut – for usage with a rewinder,

Cut after no activity – for cutting when the print job is finished,

Cut after button press – for cutting when you choose to press the button,

Cut after every label – or producing e.g. single price tags or ID cards,

Cut after x labels – which gives you the opportunity to choose the number of labels that needs to stay in one row before cutting.

Cosmetic Labels

Garden Labels

Barcode Labels

Food Labels

Chemical Labels

Water Bottle Labels

Print Method:	Thermal inkjet
Print Resolution:	600 x 1200 dpi native; up to 1200 x 4800 dpi
Droplet size:	4 picolitre
Print Speeds:	Up to 63.5 mm (2.5″) per second
Inks:	Single high capacity CMY ink cartridge, process black (dye or pigment ink)
Printhead:	Included in cartridge
Colours:	16.7 million
Colour Matching:	ICC colour profiles included; ability to add custom ICC colour profiles for other media types
Print Width:	19 – 108 mm (0.75″ – 4.25″)
Media Width:	25 – 108 mm (1″ – 4.25″)
Print Length:	19 – 609 mm (0.75″ – 24″)
Media Types:	Roll-fed pressure-sensitive labels, roll-fed tags, fan-fold labels or tags
Media Sensing:	Moveable see-through sensor for die-cut labels; reflective sensor for labels and tags with black stripe; can use continuous and pre-printed labels and tags
Media Feed:	Internal or external
Supply Roll:	127 mm (5″) maximum outer diameter on 51 mm (2″) core; core has additional restrictions – see manual
Cutter:	LX500ec with built-in guillotine style label cutter
Ink Level Warning:	Calculates actual number of prints remaining based upon ink usage of graphics being printed.
Indicator Lights:	Power, Ink
Controls:	Ink, Load/Feed, Unload
Operating Systems:	Windows® 7 – 11 Mac OS X 10.11 – macOS 12 (Monterey)
Data Interface/Connections:	USB 2.0
Label Design Software:	BarTender UltraLite and NiceLabel Free DTM Edition (Windows) Belight Swift Publisher 5 (Mac) Can also be used with most other popular label design & graphics programs.
Power Requirements:	100-240 V AC (50/60 Hz), 12 V DC, 5.0 A
Power Consumption:	Maximum: 60 W
Certifications:	UL, UL-C, CE, KC, RoHS
Weight:	3.2 kg
Dimensions (WxHxD):	264 mm x 180 mm x 389 mm
Operating Temperature:	10 °C to 35 °C
Operating Humidity:	10 % to 60 % RH (non-condensing)
Available Versions:	LX500ec with cutter (074276)
What’s in the Box:	LX500ec Color Label Printer, one dye-based CMY ink cartridge (053374), one 4×3″ DTM Paper High Gloss starter roll, USB 2.0cable, EU power cord and instructions Label design software and printer driver can be downloaded from the DTM Print website.
Recommended Accessories:	DTM Print Label Re-/Unwinders
Manufacturer:	Primera Technology, Inc.

Label/Print Width:	19 – 108 mm (0.75″- 4.25″)
Liner/Media Width:	25 – 108 mm (1″ – 4.25″)
Label/Print Hight/Length:	6 – 609 mm (0.25″ – 24″)
*Media Thickness (Liner + Label):**	Max. 254 µm (0.254 mm) / 10 mil (0.010″)
Distance from edge of media to edge of label:	Printer driver assumes 2 mm gap. However, this is adjustable via the left margin offset.
Gap between labels:	2.54 – 254 mm (0.1″ – 10″)
Width of through-hole:	6.35 – 12.7 mm (0.25″ – 0.5″)
Reflective/Black Mark Width:**	Min: 2.54 mm (0.1″) Max: Equal to the gap between labels
Max Outer Diameter (OD):	127 mm (5″)
Inner Core Diameter (ID):	50.8 mm (2″)

* This is the recommended maximum. There are two factors that determine whether the printer will accept any particular stock thickness. The ability for the printer to pull the paper through the printer area. The ability for the sensor to read through the backing if the sensor is set to die-cut. ** The Reflective/Black Mark should be opaque to infrared light. The mark should be between the labels. The end of the mark should correspond with the beginning of the label.

Further information is available in the user manual.
